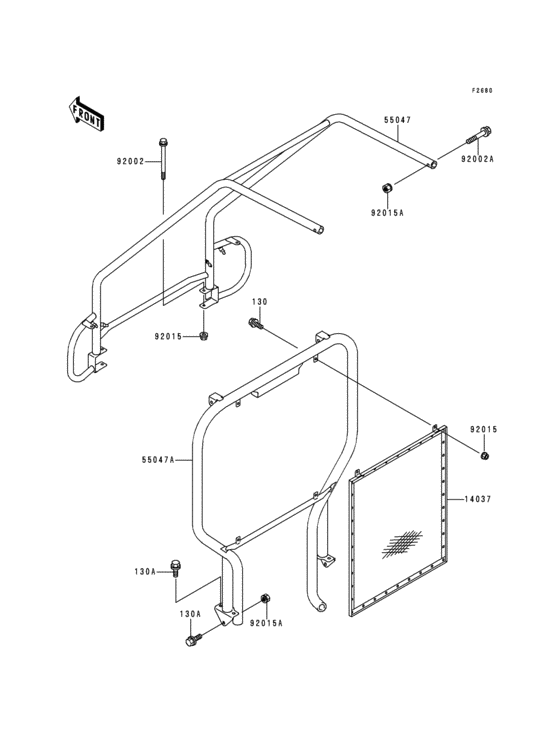

Guard Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0820
BOLT-FLANGED
|
130J0820 |
— | ||
| replacement | |||||
|
130
|
130
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $1.24 |
||
|
130A
|
130A
130J1020
BOLT-FLANGED
|
130J1020 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB1020 BOLT-FLANGED |
130BB1020 |
from US $1.40 |
||
|
14037
|
14037
14037-1145 SCREEN,BAR,COMP,RR |
14037-1145 |
US $175.55 |
||
|
55047
|
55047
55047-1006 BAR COMP FR |
55047-1006 |
US $165.35 |
||
|
55047A
|
55047A
55047-1007 BAR COMP RR |
55047-1007 |
US $197.55 |
||
|
92002
|
92002
92002-1077 BOLT,8X95 |
92002-1077 |
from US $7.44 |
||
|
92002A
|
92002A
92002-1127 BOLT,10X55 |
92002-1127 |
from US $6.02 |
||
|
92015
|
92015
92015-1696 NUT,FLANGED,LOCK,8MM |
92015-1696 |
from US $3.17 |
||
| replacement | |||||
|
92015
|
92015
92210-0005 NUT,FLANGED,LOCK,8MM |
92210-0005 |
from US $2.30 |
||
|
92015A
|
92015A
92015-1808 NUT,LOCK,10MM |
92015-1808 |
US $3.29 |
||
| replacement | |||||
|
92015A
|
92015A
92210-1204 NUT,LOCK,10MM |
92210-1204 |
from US $5.59 |
||
