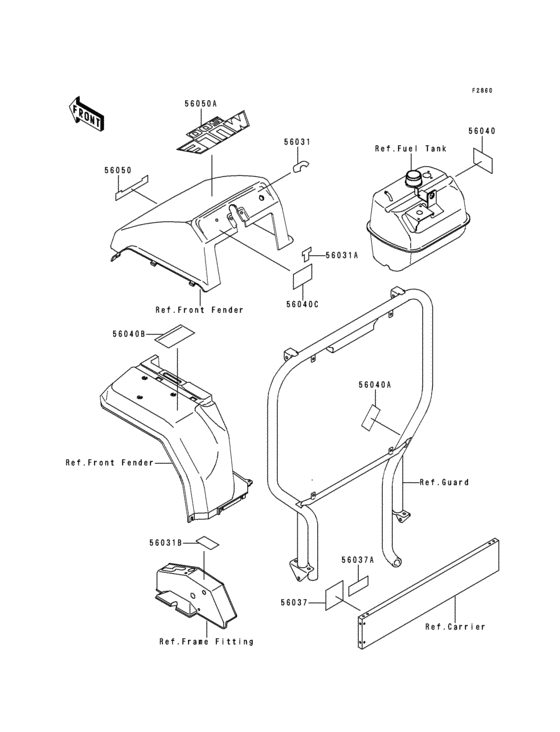

Label Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56031
|
56031
56031-1740
LABEL-MANUAL,IGNITION
|
56031-1740 |
— | ||
|
56031A
|
56031A
56031-1741 LABEL-MANUAL,LIGHTING |
56031-1741 |
from US $4.35 |
||
|
56031B
|
56031B
56031-1742 LABEL-MANUAL,SHIFT CO |
56031-1742 |
from US $4.35 |
||
|
56037
|
56037
56037-1525 LABEL-SPECIFICATION,T |
56037-1525 |
US $6.66 |
||
|
56037A
|
56037A
56037-1526 LABEL-SPECIFICATION,C |
56037-1526 |
from US $4.67 |
||
|
56040
|
56040
56040-1241 Label-warning,fuel tank |
56040-1241 |
US $4.77 |
||
| replacement | |||||
|
56040
|
56040
56071-7501 LABEL-WARNING,GASOLIN |
56071-7501 |
US $4.18 |
||
|
56040A
|
56040A
56040-1242 Label-warning|label-warning,bed raised |
56040-1242 |
US $4.77 |
||
| replacement | |||||
|
56040A
|
56040A
56070-7515 LABEL-WARNING,BED RAI |
56070-7515 |
US $4.18 |
||
|
56040B
|
56040B
56040-1316 LABEL-WARNING,GENERAL |
56040-1316 |
US $11.18 |
||
|
56040C
|
56040C
56040-1317 LABEL-WARNING,OFF-HIG |
56040-1317 |
US $3.94 |
||
| replacement | |||||
|
56040C
|
56040C
56070-0050 LABEL-WARNING,OFF-HIG |
56070-0050 |
US $4.18 |
||
|
56050
|
56050
56050-1609 MARK,KAWASAKI |
56050-1609 |
US $12.20 |
||
|
56050A
|
56050A
56050-1610 MARK,MULE 500 |
56050-1610 |
US $18.29 |
||
