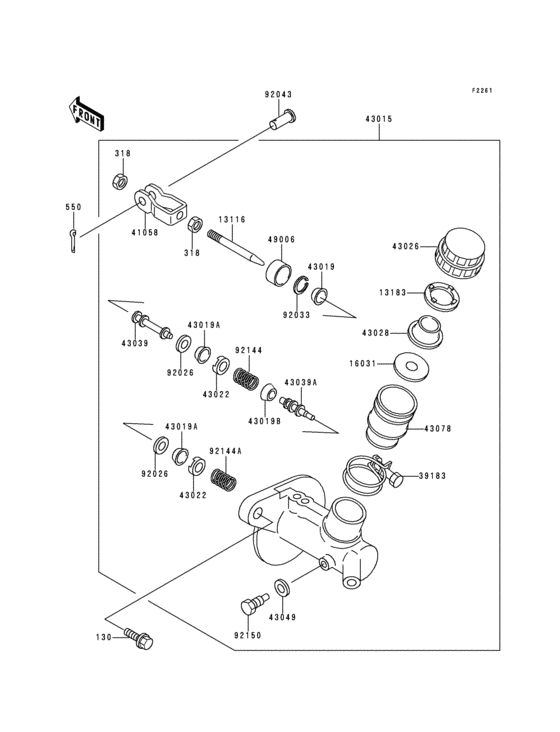

Master cylinder Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0820 BOLT-FLANGED |
130D0820 |
from US $1.27 |
||
| replacement | |||||
|
130
|
130
130AA0820 BOLT-FLANGED |
130AA0820 |
from US $1.05 |
||
|
318
|
318
318H0800 NUT-HEX-SMALL,8MM |
318H0800 |
US $1.57 |
||
| replacement | |||||
|
318
|
318
318BA0800 NUT-HEX-SMALL,8MM |
318BA0800 |
from US $0.63 |
||
|
550
|
550
550D2518 PIN,COTTER,2.5X18 |
550D2518 |
US $0.79 |
||
| replacement | |||||
|
550
|
550
550AA2518 PIN,COTTER,2.5X18 |
550AA2518 |
from US $0.79 |
||
|
13116
|
13116
13116-1134 ROD-PUSH |
13116-1134 |
from US $21.77 |
||
|
13183
|
13183
13183-1306 PLATE |
13183-1306 |
from US $2.95 |
||
|
16031
|
16031
16031-1069 FLOAT |
16031-1069 |
from US $5.28 |
||
|
39183
|
39183
39183-1055 BAND-ASSY |
39183-1055 |
from US $7.62 |
||
|
43015
|
43015
43015-1398 Cylinder-assy-master |
43015-1398 |
US $288.72 |
||
| replacement | |||||
|
43015
|
43015
43015-1683 CYLINDER-ASSY-MASTER |
43015-1683 |
from US $279.94 |
||
|
43019
|
43019
43019-1063 CUP-BRAKE |
43019-1063 |
US $2.93 |
||
| replacement | |||||
|
43019
|
43019
43020-1124 PISTON-COMP-BRAKE |
43020-1124 |
from US $59.90 |
||
|
43019A
|
43019A
43019-1064 Cup-brake |
43019-1064 |
US $58.34 |
||
| replacement | |||||
|
43019A
|
43019A
43020-1124 PISTON-COMP-BRAKE |
43020-1124 |
from US $59.90 |
||
|
43019B
|
43019B
43019-1065 Cup-brake |
43019-1065 |
US $52.54 |
||
| replacement | |||||
|
43019B
|
43019B
43020-1124 PISTON-COMP-BRAKE |
43020-1124 |
from US $59.90 |
||
|
43022
|
43022
43022-1053 Stopper-brake |
43022-1053 |
US $57.26 |
||
| replacement | |||||
|
43022
|
43022
43020-1124 PISTON-COMP-BRAKE |
43020-1124 |
from US $59.90 |
||
|
43026
|
43026
43026-1067 CAP-BRAKE |
43026-1067 |
from US $17.42 |
||
|
43028
|
43028
43028-1072 DIAPHRAGM |
43028-1072 |
US $13.88 |
||
| replacement | |||||
|
43028
|
43028
43028-1078 DIAPHRAGM |
43028-1078 |
from US $10.43 |
||
|
43039
|
43039
43039-1064 PISTON-BRAKE |
43039-1064 |
US $23.67 |
||
| replacement | |||||
|
43039
|
43039
43020-1124 PISTON-COMP-BRAKE |
43020-1124 |
from US $59.90 |
||
|
43039A
|
43039A
43039-1065 PISTON-BRAKE |
43039-1065 |
US $24.86 |
||
| replacement | |||||
|
43039A
|
43039A
43020-1124 PISTON-COMP-BRAKE |
43020-1124 |
from US $59.90 |
||
|
43049
|
43049
43049-1065 PACKING |
43049-1065 |
from US $2.49 |
||
|
43078
|
43078
43078-1093 RESERVOIR |
43078-1093 |
US $35.66 |
||
|
49006
|
49006
49006-1245 BOOT |
49006-1245 |
from US $5.28 |
||
|
92026
|
92026
92026-1351 SPACER |
92026-1351 |
US $2.41 |
||
| replacement | |||||
|
92026
|
92026
43020-1124 PISTON-COMP-BRAKE |
43020-1124 |
from US $59.90 |
||
|
92033
|
92033
92033-1255 RING-SNAP |
92033-1255 |
from US $2.33 |
||
|
92043
|
92043
92043-1039 PIN |
92043-1039 |
from US $6.65 |
||
|
92144
|
92144
92144-1330 SPRING |
92144-1330 |
from US $4.82 |
||
|
92144A
|
92144A
92144-1331 SPRING |
92144-1331 |
from US $4.82 |
||
|
92150
|
92150
92150-1165 BOLT,STOP |
92150-1165 |
from US $2.33 |
||
