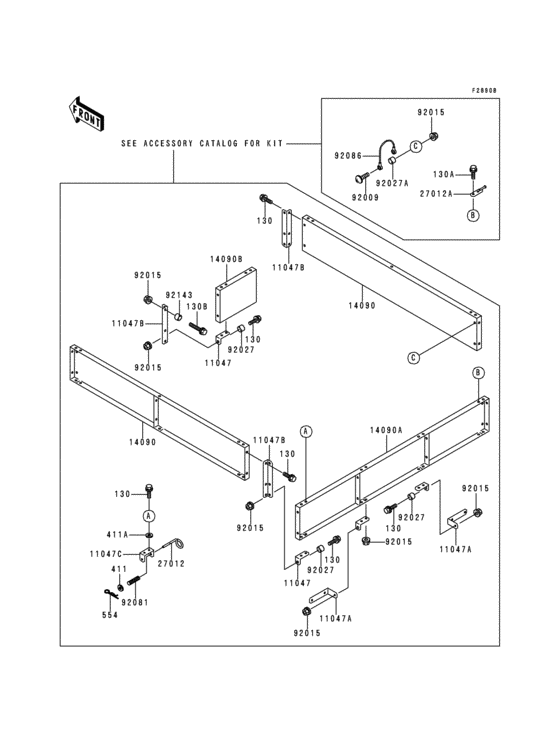

Optional parts(bed gate) Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0616
BOLT-FLANGED,6X16
|
130J0616 |
— | ||
| replacement | |||||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.95 |
||
|
130A
|
130A
130J0620
BOLT-FLANGED
|
130J0620 |
— | ||
| replacements | |||||
|
130A
|
130A
130BB0620 BOLT-FLANGED |
130BB0620 |
from US $0.78 |
||
|
130A
|
130A
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
130B
|
130B
130J0635 BOLT-FLANGED,6X35 |
130J0635 |
from US $1.74 |
||
| replacement | |||||
|
130B
|
130B
130BB0635 BOLT-FLANGED,6X35 |
130BB0635 |
from US $1.27 |
||
|
411
|
411
411F0600 WASHER-PLAIN,6.5X13X1 |
411F0600 |
from US $1.53 |
||
| replacement | |||||
|
411
|
411
411AB0600 WASHER-PLAIN,(6.5x13x1) |
411AB0600 |
from US $0.63 |
||
|
411A
|
411A
411F0800 WASHER-PLAIN,8.5X18X1 |
411F0800 |
US $2.68 |
||
| replacement | |||||
|
411A
|
411A
411AB0800 WASHER-PLAIN,8.5X18X1 |
411AB0800 |
from US $0.79 |
||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
11047
|
11047
11047-1426-B1 BRACKET,GATE CRR |
11047-1426-B1 |
US $9.79 |
||
|
11047A
|
11047A
11047-1427-B1 BRACKET,GATE CRR |
11047-1427-B1 |
US $10.17 |
||
|
11047B
|
11047B
11047-1428-B1 BRACKET,GATE CRR |
11047-1428-B1 |
US $13.32 |
||
|
11047C
|
11047C
11047-1429-B1 BRACKET,GATE CRR |
11047-1429-B1 |
US $14.94 |
||
|
14090
|
14090
14090-1109-B1 CARRIER,SIDE COVER |
14090-1109-B1 |
US $99.59 |
||
|
14090A
|
14090A
14090-1110-B1 CARRIER,REAR COVER |
14090-1110-B1 |
US $109.55 |
||
|
14090B
|
14090B
14090-1111-B1 CARRIER,FRONT COVER |
14090-1111-B1 |
US $40 |
||
|
27012
|
27012
27012-1449 HOOK,GATE CRR |
27012-1449 |
US $19.75 |
||
|
27012A
|
27012A
27012-1454-B1
Hook
|
27012-1454-B1 |
— | ||
|
92009
|
92009
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1694 SCREW |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1386 NUT,FLANGED,6MM |
92015-1386 |
from US $3.48 |
||
| replacement | |||||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92027
|
92027
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
|
92027A
|
92027A
92027-129 COLLAR,6.8X10X8.5 |
92027-129 |
from US $3.17 |
||
|
92081
|
92081
92081-096 SPRING-CLUTCH RELEASE |
92081-096 |
from US $3.11 |
||
|
92086
|
92086
92086-1056
Wire
|
92086-1056 |
— | ||
|
92143
|
92143
92143-1046 COLLAR |
92143-1046 |
from US $3.48 |
||
