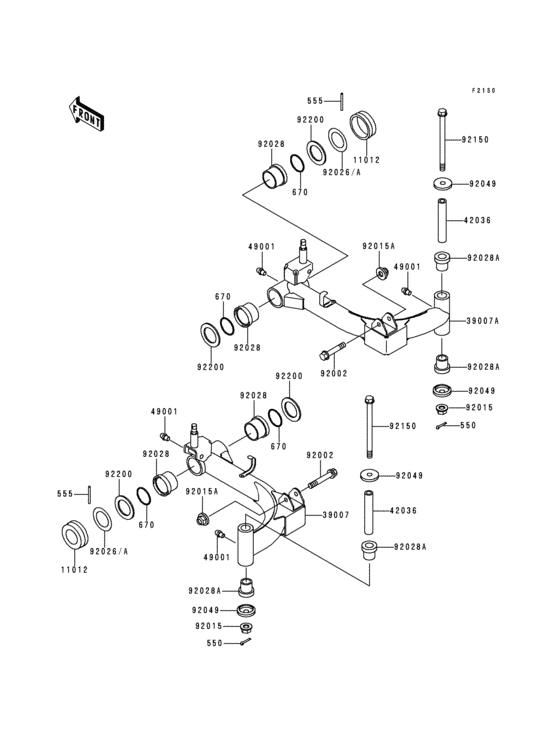

Suspension Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D2025 PIN-COTTER,2.0X25 |
550D2025 |
US $3.37 |
||
| replacement | |||||
|
550
|
550
550AA2025 PIN-COTTER,2.0X25 |
550AA2025 |
from US $1.09 |
||
|
555
|
555
555A0656
PIN-SPRING,6X56
|
555A0656 |
— | ||
|
670
|
670
670B3042 O RING,42MM |
670B3042 |
US $30.56 |
||
|
11012
|
11012
11012-1763 CAP |
11012-1763 |
US $9.05 |
||
|
39007
|
39007
39007-1198 ARM SUSP,LH |
39007-1198 |
US $263.70 |
||
|
39007A
|
39007A
39007-1199 ARM SUSP,RH |
39007-1199 |
US $263.70 |
||
|
42036
|
42036
42036-1277
SLEEVE,12X20X120
|
42036-1277 |
— | ||
|
49001
|
49001
49001-1051
NIPPLE-GREASE
|
49001-1051 |
— | ||
| replacement | |||||
|
49001
|
49001
49001-0001 NIPPLE-GREASE |
49001-0001 |
from US $2.06 |
||
|
92002
|
92002
92002-1529 BOLT,FLANGED,10X53.5 |
92002-1529 |
from US $5.70 |
||
|
92015
|
92015
92015-1433 NUT,12MM |
92015-1433 |
from US $5.54 |
||
|
92015A
|
92015A
92015-1597 NUT,LOCK,10MM |
92015-1597 |
from US $7.04 |
||
|
92026
|
92026
92026-1405 SPACER,42.5X64X1 |
92026-1405 |
US $6.21 |
||
|
92026A
|
92026A
92026-1407 SPACER,42.5X64X0.5 |
92026-1407 |
US $4.99 |
||
|
92028
|
92028
92028-1619 BUSHING |
92028-1619 |
US $22.86 |
||
|
92028A
|
92028A
92028-1620 BUSHING |
92028-1620 |
US $20.12 |
||
| replacement | |||||
|
92028A
|
92028A
92028-1723 BUSHING |
92028-1723 |
US $20.12 |
||
|
92049
|
92049
92049-1371 SEAL-OIL |
92049-1371 |
from US $7 |
||
|
92150
|
92150
92150-1437 BOLT,FLANGED,12X170 |
92150-1437 |
from US $17.42 |
||
|
92200
|
92200
92200-1069 WASHER,42.5X64X3.2 |
92200-1069 |
US $4.45 |
||
