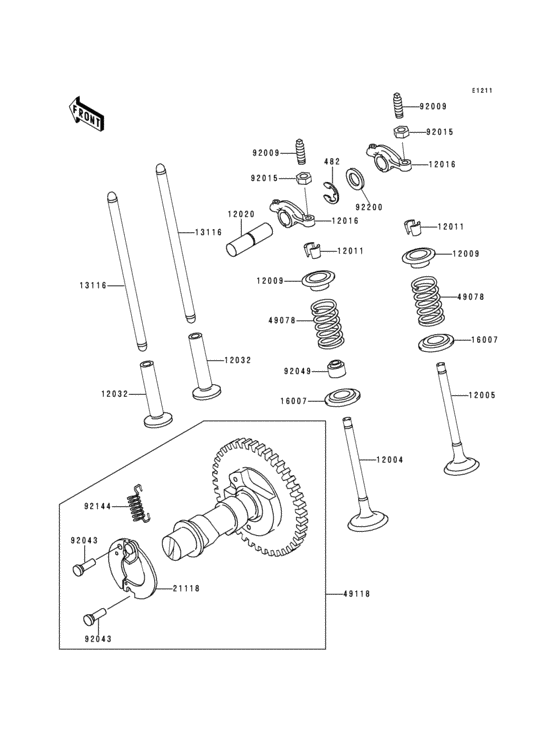

Valve/camshaft Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
482
|
482
482J0100 CIRCLIP 10MM |
482J0100 |
from US $1.11 |
||
|
12004
|
12004
12004-2084 VALVE-INTAKE |
12004-2084 |
from US $13.71 |
||
|
12005
|
12005
12005-2077 VALVE-EXHAUST |
12005-2077 |
from US $30.33 |
||
|
12009
|
12009
12009-2060 RETAINER |
12009-2060 |
from US $3.11 |
||
|
12011
|
12011
12011-2052 COLLET |
12011-2052 |
from US $1.71 |
||
|
12016
|
12016
12016-2058 ARM-ROCKER |
12016-2058 |
from US $23.05 |
||
|
12020
|
12020
12020-2060 SHAFT-ROCKER |
12020-2060 |
from US $4.51 |
||
|
12032
|
12032
12032-2060 TAPPET-VALVE |
12032-2060 |
from US $12.12 |
||
|
13116
|
13116
13116-2054 ROD-PUSH |
13116-2054 |
US $13.19 |
||
| replacement | |||||
|
13116
|
13116
13116-0044 ROD-PUSH |
13116-0044 |
from US $11.82 |
||
|
16007
|
16007
16007-2052 SEAT-SPRING |
16007-2052 |
from US $1.07 |
||
|
21118
|
21118
21118-2074 DECOMPRESSOR |
21118-2074 |
US $7.27 |
||
| replacement | |||||
|
21118
|
21118
21118-2089 DECOMPRESSOR |
21118-2089 |
from US $7.27 |
||
|
49078
|
49078
49078-2060 SPRING-VALVE |
49078-2060 |
from US $4.51 |
||
|
49118
|
49118
49118-2081 CAMSHAFT-COMP |
49118-2081 |
from US $166.26 |
||
|
92009
|
92009
92009-1109 SCREW,VALVE ADJUST |
92009-1109 |
from US $1.96 |
||
|
92015
|
92015
92015-1137 NUT,VALVE ADJUST LOCK |
92015-1137 |
from US $1.27 |
||
| replacement | |||||
|
92015
|
92015
92210-1491 NUT,VALVE ADJUST LOCK |
92210-1491 |
from US $1.20 |
||
|
92043
|
92043
92043-2113 PIN |
92043-2113 |
from US $1.21 |
||
|
92049
|
92049
92049-2100 SEAL-OIL |
92049-2100 |
from US $3.27 |
||
|
92144
|
92144
92144-2166 SPRING |
92144-2166 |
US $2.52 |
||
|
92200
|
92200
92022-2397 WASHER-12.1X19X1.6 |
92022-2397 |
from US $1.09 |
||
