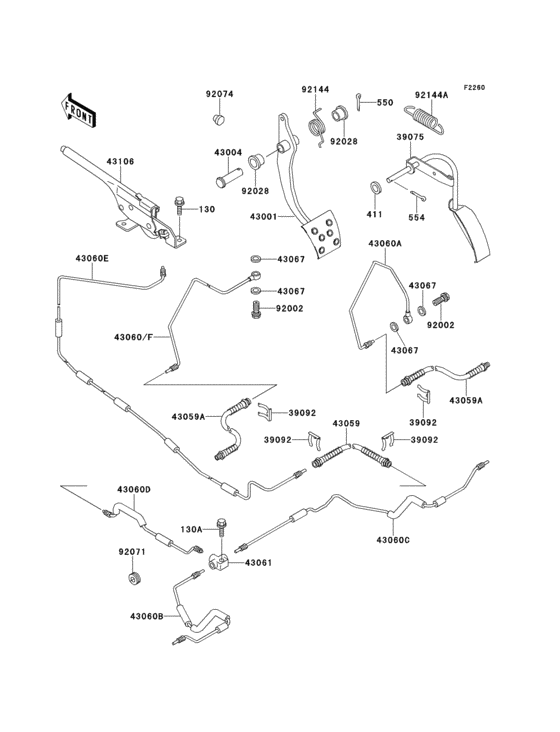

Brake pedal/throttle lever Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-B2
- Engine Capacity
- 300
- Year
- 1996
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0816 BOLT-FLANGED |
130D0816 |
US $1.33 |
||
| replacement | |||||
|
130
|
130
130AA0816 BOLT-FLANGED |
130AA0816 |
from US $1.24 |
||
|
130A
|
130A
130D0830 BOLT-FLANGED |
130D0830 |
US $2.59 |
||
| replacements | |||||
|
130A
|
130A
130BA0830 BOLT-FLANGED,8X30 |
130BA0830 |
from US $1.43 |
||
|
130A
|
130A
130AA0830 BOLT-FLANGED |
130AA0830 |
from US $1.14 |
||
|
411
|
411
411E1000 WASHER-PLAIN |
411E1000 |
US $0.45 |
||
| replacement | |||||
|
411
|
411
411AA1000 WASHER-PLAIN,10MM |
411AA1000 |
from US $0.72 |
||
|
550
|
550
550D2525
PIN-COTTER,2.5X25
|
550D2525 |
— | ||
| replacement | |||||
|
550
|
550
550AA2525 PIN-COTTER,2.5X25 |
550AA2525 |
from US $0.63 |
||
|
554
|
554
554A1000
PIN-SNAP,10MM
|
554A1000 |
— | ||
| replacement | |||||
|
554
|
554
554DA1000 PIN-SNAP,10MM |
554DA1000 |
from US $0.91 |
||
|
39075
|
39075
39075-1058 LEVER THROTTLE |
39075-1058 |
US $21.01 |
||
|
39092
|
39092
39092-1052 PIN-HAIR |
39092-1052 |
from US $5.28 |
||
|
43001
|
43001
43001-1293 LEVER BRAKE,PEDAL |
43001-1293 |
US $63.18 |
||
|
43004
|
43004
43004-1128 SHAFT-BRAKE |
43004-1128 |
from US $12.12 |
||
|
43059
|
43059
43059-1665
HOSE BRAKE,CNT
|
43059-1665 |
— | ||
|
43059A
|
43059A
43059-1666 HOSE BRAKE,FR |
43059-1666 |
US $81.79 |
||
|
43060A
|
43060A
43060-1078 PIPE-BRAKE,FR,RH |
43060-1078 |
US $52.49 |
||
|
43060B
|
43060B
43060-1088 PIPE-BRAKE,RR,LH |
43060-1088 |
from US $22.87 |
||
|
43060C
|
43060C
43060-1089 PIPE-BRAKE,RR,RH |
43060-1089 |
from US $35.77 |
||
|
43060D
|
43060D
43060-1090 PIPE-BRAKE,RR,CNT |
43060-1090 |
US $22.87 |
||
|
43060E
|
43060E
43060-1091
PIPE-BRAKE,FR,CNT
|
43060-1091 |
— | ||
|
43060F
|
43060F
43060-1099 PIPE-BRAKE,FR,LH |
43060-1099 |
US $43.18 |
||
|
43061
|
43061
43061-1063 JOINT-BRAKE |
43061-1063 |
from US $32.34 |
||
|
43067
|
43067
43067-001 WASHER-SEAL,10.1X14.5 |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
43106
|
43106
43106-1001 LEVER-ASSY-PARKING BR |
43106-1001 |
US $134.87 |
||
|
92002
|
92002
92002-1888
BOLT,OIL,L=23
|
92002-1888 |
— | ||
| replacement | |||||
|
92002
|
92002
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
|
92028
|
92028
92028-1571 BUSHING |
92028-1571 |
from US $6.54 |
||
|
92071
|
92071
92071-1152 GROMMET |
92071-1152 |
from US $3.17 |
||
|
92074
|
92074
92074-028 PLUG,RUBBER |
92074-028 |
from US $2.85 |
||
|
92144
|
92144
92144-1536 SPRING,BRAKE PEDAL RE |
92144-1536 |
from US $5.13 |
||
|
92144A
|
92144A
92144-1638 SPRING |
92144-1638 |
from US $3.89 |
||
