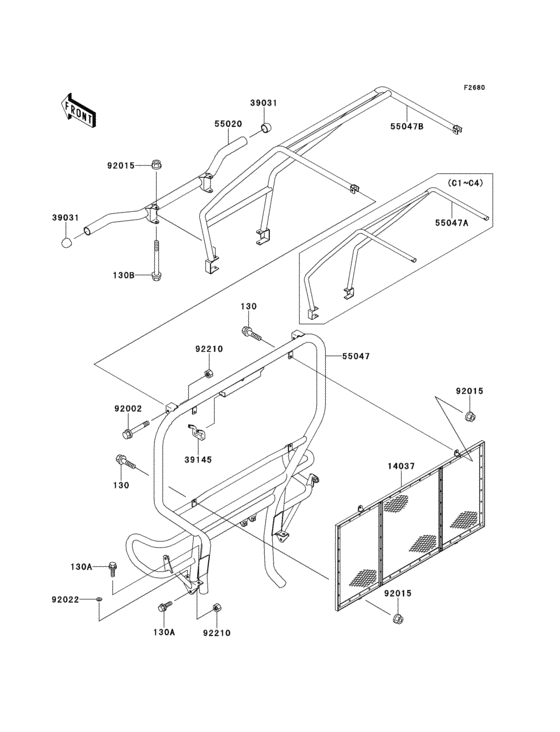

Guard(s) Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C3
- Engine Capacity
- 286
- Year
- 1999
- Sales region
- Europe
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0820
BOLT-FLANGED
|
130J0820 |
— | ||
| replacement | |||||
|
130
|
130
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $1.24 |
||
|
130A
|
130A
130J1020
BOLT-FLANGED
|
130J1020 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB1020 BOLT-FLANGED |
130BB1020 |
from US $1.40 |
||
|
130B
|
130B
130S08100 BOLT-FLANGED,8X100 |
130S08100 |
US $7.74 |
||
| replacement | |||||
|
130B
|
130B
130CB08100 BOLT-FLANGED,8X100 |
130CB08100 |
from US $2.33 |
||
|
14037
|
14037
14037-1230 SCREEN,BAR COMP,PR |
14037-1230 |
US $171.02 |
||
|
39031
|
39031
39031-1059 CAP-END,BUMPER PIPE |
39031-1059 |
from US $5.44 |
||
|
39145
|
39145
39145-1105 TRIM-SEAL |
39145-1105 |
US $2.61 |
||
|
55020
|
55020
55020-1576 GUARD,FRONT BUMPER |
55020-1576 |
US $167.65 |
||
|
55047
|
55047
55047-1009
BAR-COMP,RR
|
55047-1009 |
— | ||
|
55047A
|
55047A
55047-1010 BAR-COMP,FR |
55047-1010 |
US $160.13 |
||
| replacement | |||||
|
55047A
|
55047A
55047-1015 BAR-COMP,FR |
55047-1015 |
US $160.13 |
||
|
92002
|
92002
92002-1127 BOLT,10X55 |
92002-1127 |
from US $6.02 |
||
|
92015
|
92015
92015-1696 NUT,FLANGED,LOCK,8MM |
92015-1696 |
from US $3.17 |
||
| replacement | |||||
|
92015
|
92015
92210-0005 NUT,FLANGED,LOCK,8MM |
92210-0005 |
from US $2.30 |
||
|
92022
|
92022
92022-1396 WASHER,10.5X26X2.3,BL |
92022-1396 |
from US $1.90 |
||
|
92210
|
92210
92210-1204 NUT,LOCK,10MM |
92210-1204 |
from US $5.59 |
||
