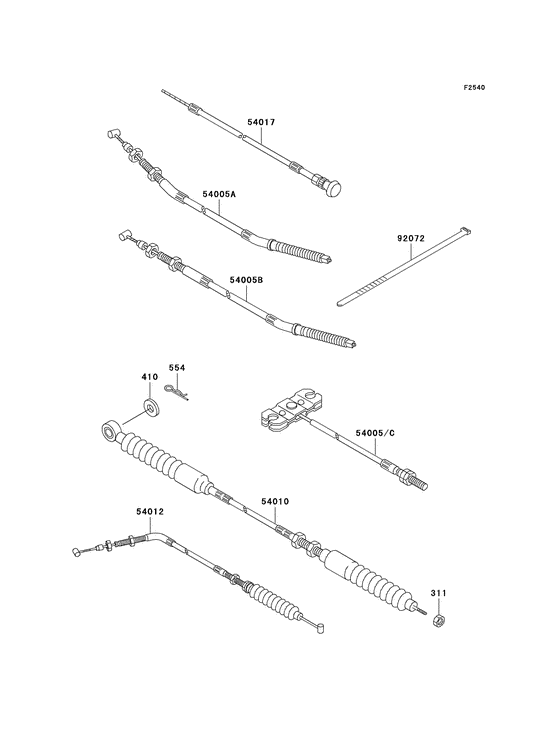

Cables Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C4
- Engine Capacity
- 286
- Year
- 2000
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311B0600
NUT-HEX,6MM
Nut-hex,6mm; |
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MMNut-hex,6mm; |
311AA0600 |
from US $0.63 |
||
|
410
|
410
410E0800 WASHER-PLAIN-SMALL,8MW-plain-s,8mm; |
410E0800 |
US $0.61 |
||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8MW-plain-s,8mm; |
410AA0800 |
from US $0.63 |
||
|
554
|
554
554A0800 PIN-SNAPPin-snap,8mm; |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
554
|
554
554DA0800 PIN-SNAPPin-snap,8mm; |
554DA0800 |
from US $0.63 |
||
|
54005A
|
54005A
54005-1189 CABLE-BRAKE,PARKING LCable-brake,parking,lh; |
54005-1189 |
US $42.77 |
||
|
54005B
|
54005B
54005-1190 CABLE-BRAKE,PARKINGRHCable-brake,parking,rh; |
54005-1190 |
US $42.77 |
||
|
54005C
|
54005C
54005-1198 CABLE-BRAKE,PARKING,FCable-brake,parking,fr; |
54005-1198 |
from US $10.54 |
||
|
54010
|
54010
54010-1107 CABLE,SHIFT CONTROLCable,shift control; |
54010-1107 |
US $35.62 |
||
|
54012
|
54012
54012-1533 CABLE-THROTTLE |
54012-1533 |
from US $23.22 |
||
|
54017
|
54017
54017-1182 CABLE-STARTER |
54017-1182 |
from US $22.71 |
||
|
92072
|
92072
92072-1239 BAND,L=188Band,l=188; |
92072-1239 |
from US $1.90 |
||
