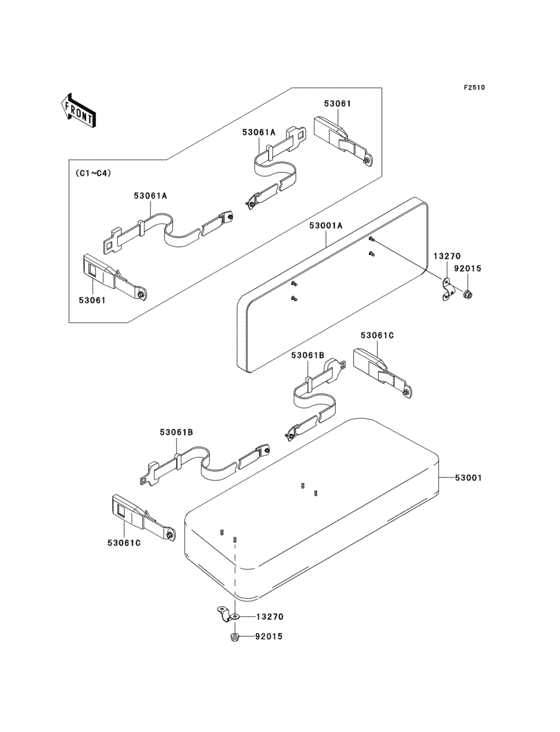

Seat Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C4
- Engine Capacity
- 286
- Year
- 2000
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13270
|
13270
13270-1676 PLATE,SEAT |
13270-1676 |
from US $6.66 |
||
|
53001
|
53001
53001-1822-PA SEAT-ASSY,CUSHION,GRY |
53001-1822-PA |
from US $571.97 |
||
|
53001A
|
53001A
53001-1823-PA SEAT-ASSY,BACK,GRAY |
53001-1823-PA |
from US $383.27 |
||
|
53061
|
53061
53061-1004 BELT-SEAT,BUCKLE |
53061-1004 |
from US $65.16 |
||
|
53061A
|
53061A
53061-1005 BELT-SEAT,LATCH PLATE |
53061-1005 |
from US $70.44 |
||
|
92015
|
92015
92015-1696 NUT,FLANGED,LOCK,8MM |
92015-1696 |
from US $3.17 |
||
| replacement | |||||
|
92015
|
92015
92210-0005 NUT,FLANGED,LOCK,8MM |
92210-0005 |
from US $2.30 |
||
