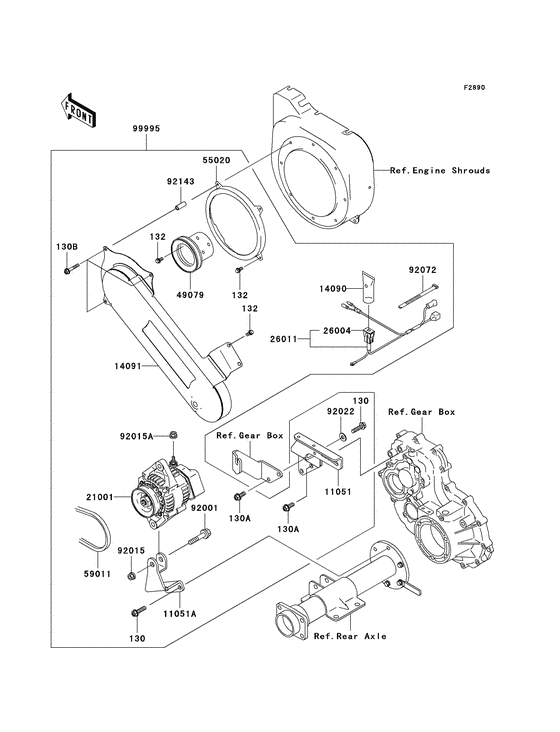

Optional parts Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C6
- Engine Capacity
- 286
- Year
- 2003
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130H0830 BOLT-FLANGED,8X30Bolt-flanged,8x30; |
130H0830 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BA0830 BOLT-FLANGED,8X30Bolt-flanged,8x30; |
130BA0830 |
from US $1.43 |
||
|
130A
|
130A
130J0820
BOLT-FLANGED
Bolt-flanged,8x20; |
130J0820 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0820 BOLT-FLANGEDBolt-flanged,8x20; |
130BB0820 |
from US $1.24 |
||
|
130B
|
130B
130L0635 BOLT-FLANGED,6X35 |
130L0635 |
from US $1.43 |
||
| replacement | |||||
|
130B
|
130B
130BB0635 BOLT-FLANGED,6X35 |
130BB0635 |
from US $1.27 |
||
|
132
|
132
132J0612
BOLT-FLANGED-SMALL,6X
|
132J0612 |
— | ||
| replacement | |||||
|
132
|
132
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
11051
|
11051
11051-1359 BRACKET,GENERATOR,UPPBracket,generator,upp; |
11051-1359 |
from US $222.39 |
||
|
11051A
|
11051A
11051-1360 BRACKET,GENERATOR,LWRBracket,generator,lwr; |
11051-1360 |
from US $164.85 |
||
|
14090
|
14090
14090-1362 COVER,HUSECover,fuse; |
14090-1362 |
from US $12.90 |
||
|
14091
|
14091
14091-1141 COVER,PULLEY BELTCover,pulley belt; |
14091-1141 |
US $424.58 |
||
|
21001
|
21001
21001-1129 GENERATOR |
21001-1129 |
from US $860.03 |
||
|
26004
|
26004
26004-1096 FUSE-ASSY,50AFuse-assy,50a; |
26004-1096 |
from US $3.33 |
||
| replacement | |||||
|
26004
|
26004
26004-0036 Fuse-Assy,50AFuse-assy,50a; |
26004-0036 |
US $6.22 |
||
|
26011
|
26011
26011-1586 WIRE-LEAD,GENERATORWire-lead,generator; |
26011-1586 |
from US $61.59 |
||
|
49079
|
49079
49079-1060 PULLEY-BELT |
49079-1060 |
US $148.72 |
||
|
55020
|
55020
55020-2070 GUARD,FLYWHEEL SIDEGuard,flywheel side; |
55020-2070 |
US $13.75 |
||
|
59011
|
59011
59011-1064 BELT |
59011-1064 |
from US $23.26 |
||
|
92001
|
92001
92001-1522 BOLT,BLACK,10X47Bolt,black,10x47; |
92001-1522 |
from US $3.48 |
||
|
92015
|
92015
92015-1189 NUT,LOCK,10MM,BLACKNut,lock,10mm,black; |
92015-1189 |
from US $3.96 |
||
|
92015A
|
92015A
92015-1367 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-1317 WASHER,8.5X20X1.6,BLAWasher,8.5x20x1.6,black; |
92022-1317 |
from US $2.69 |
||
|
92072
|
92072
92072-030 BAND,SHORTBand,l=123; |
92072-030 |
from US $3.01 |
||
|
92143
|
92143
92143-1046 COLLAR |
92143-1046 |
from US $3.48 |
||
|
99995
|
99995
99995-1472 MULE 550 50 AMP KITKit.,alternator; |
99995-1472 |
US $1,178.21 |
||
