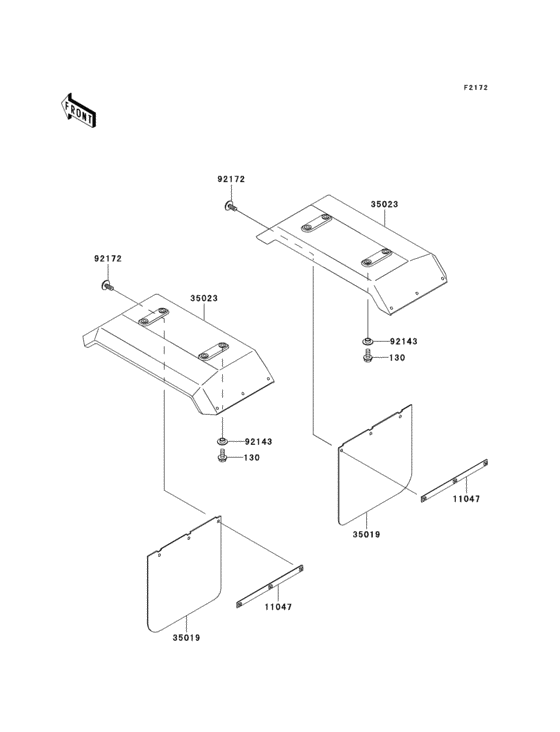

Rear fender(s) Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C6
- Engine Capacity
- 286
- Year
- 2003
- Sales region
- Europe
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
|
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
11047
|
11047
11047-1172 BRACKET REAR FLAP |
11047-1172 |
from US $12.12 |
||
|
35019
|
35019
35019-1244 FLAP,RR |
35019-1244 |
US $43.78 |
||
|
35023
|
35023
35023-1298 FENDER REAR |
35023-1298 |
from US $64.87 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92172
|
92172
92172-0004 SCREW,6X14 |
92172-0004 |
from US $1.27 |
||
