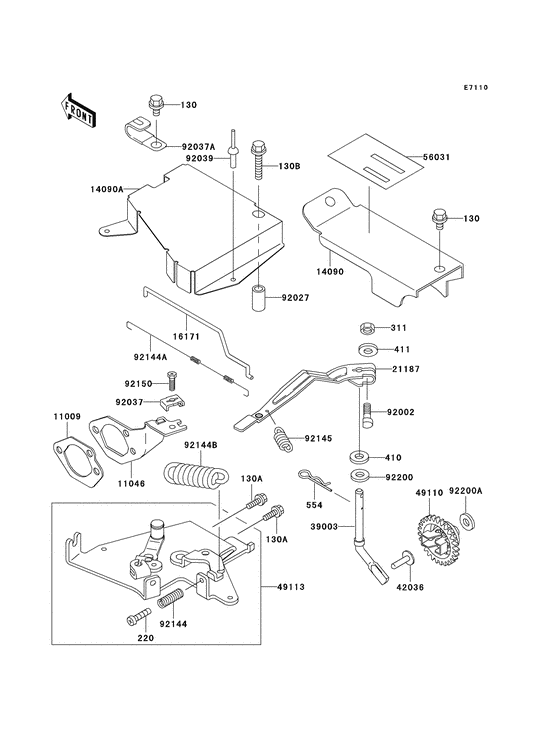

Control Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C7
- Engine Capacity
- 286
- Year
- 2004
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0812 BOLT-FLANGED,8X12Bolt-flanged,8x12; |
130B0812 |
US $0.47 |
||
| replacements | |||||
|
130
|
130
130BA0812 BOLT-FLANGEDBolt-flanged,8x12; |
130BA0812 |
from US $1.27 |
||
|
130
|
130
130AA0812 BOLT-FLANGED,8X12Bolt-flanged,8x12; |
130AA0812 |
from US $1.13 |
||
|
130A
|
130A
130G0612
BOLT-FLANGED,6X12
Bolt-flanged,6x12; |
130G0612 |
— | ||
| replacement | |||||
|
130A
|
130A
130BA0612 BOLT-FLANGED,6X12Bolt-flanged,6x12; |
130BA0612 |
from US $0.79 |
||
|
130B
|
130B
130J0830
BOLT-FLANGE,8X30
Bolt-flanged,8x30; |
130J0830 |
— | ||
| replacement | |||||
|
130B
|
130B
130BB0830 BOLT-FLANGE,8X30Bolt-flanged,8x30; |
130BB0830 |
from US $1.13 |
||
|
220
|
220
220B0522 SCREW-PAN-CROS |
220B0522 |
US $0.95 |
||
| replacement | |||||
|
220
|
220
220AA0522 SCREW-PAN-CROS |
220AA0522 |
from US $0.82 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
Nut-hex,6mm; |
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MMNut-hex,6mm; |
311AA0600 |
from US $0.63 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
Washer-plain-small,6mm; |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLWasher-plain-small,6mm; |
410AA0600 |
from US $0.79 |
||
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1Washer-plain,6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer-plain,6mm; |
411AA0600 |
from US $2.13 |
||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
11009
|
11009
11009-2925 GASKET,AIR FILTER |
11009-2925 |
from US $1.22 |
||
| replacement | |||||
|
11009
|
11009
11060-2334 GASKET,AIR FILTER |
11060-2334 |
from US $1.21 |
||
|
11046
|
11046
11046-2102 BRACKET |
11046-2102 |
from US $3.57 |
||
|
14090
|
14090
14090-1141 COVER |
14090-1141 |
from US $15.74 |
||
|
14090A
|
14090A
14090-1361 COVER |
14090-1361 |
from US $16.01 |
||
|
16171
|
16171
16171-2061 LINK-THROTTLELink,throttle; |
16171-2061 |
from US $4.51 |
||
|
21187
|
21187
21187-2066 ARM-ASSY |
21187-2066 |
from US $11.80 |
||
|
39003
|
39003
39003-2076 ARM-PIVOT |
39003-2076 |
from US $9.50 |
||
|
42036
|
42036
42036-2060 SLEEVE-GOVERNOR |
42036-2060 |
from US $2.79 |
||
|
49110
|
49110
49110-2069 GOVERNOR-ASSY |
49110-2069 |
from US $11.51 |
||
| replacement | |||||
|
49110
|
49110
49110-2085 GOVERNOR-ASSY |
49110-2085 |
US $8.62 |
||
|
49113
|
49113
49113-2127 PANEL-COMP-CONTROL |
49113-2127 |
from US $25.75 |
||
|
56031
|
56031
56031-1790 LABEL-MANUAL,OIL CAPALabel-manual,oil capacity; |
56031-1790 |
from US $4.35 |
||
|
92002
|
92002
92002-2269 BOLTBolt,6x28; |
92002-2269 |
from US $1.09 |
||
|
92027
|
92027
92027-1064 COLLARCollar,9x13x17.2; |
92027-1064 |
from US $6.80 |
||
|
92037
|
92037
92037-2020 CLAMP |
92037-2020 |
from US $0.61 |
||
|
92037A
|
92037A
92037-2098 CLAMP |
92037-2098 |
from US $1.56 |
||
|
92039
|
92039
92039-1163 RIVET,BLIND,4.0X9.2Rivet,blind,4.0x9.2; |
92039-1163 |
from US $1.36 |
||
|
92144
|
92144
92144-2266 SPRING,RPM ADJUSTMENT |
92144-2266 |
from US $3.01 |
||
|
92144A
|
92144A
92144-2340 SPRING |
92144-2340 |
from US $3.11 |
||
|
92144B
|
92144B
92144-2345 SPRING |
92144-2345 |
from US $9.33 |
||
|
92145
|
92145
92145-2054 SPRING |
92145-2054 |
from US $1.71 |
||
|
92150
|
92150
92150-2182 BOLTBolt,5x18; |
92150-2182 |
from US $0.13 |
||
|
92200
|
92200
92200-2029 WASHER,6.5X11.5X2.0Washer,6.5x11.5x2.0; |
92200-2029 |
from US $1.05 |
||
|
92200A
|
92200A
92200-2036 WASHER,6.2X20X0.5Washer,6.2x20x0.5; |
92200-2036 |
from US $1.09 |
||
