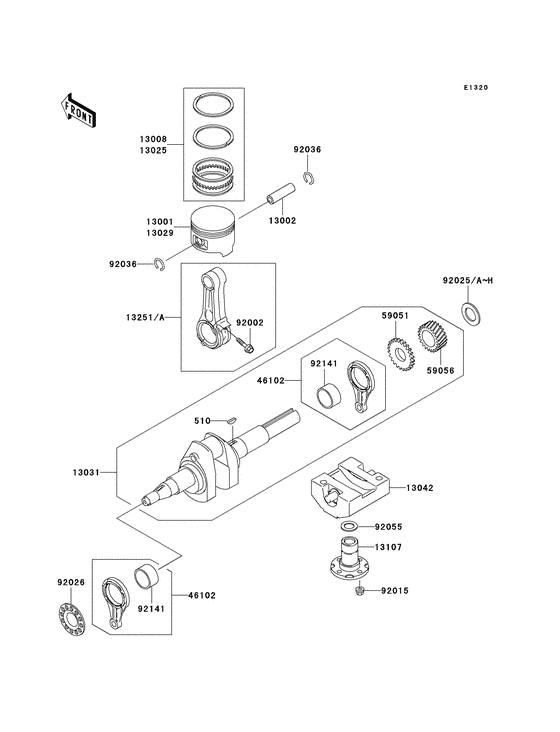

Crankshaft/piston Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C7
- Engine Capacity
- 286
- Year
- 2004
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
510
|
510
510A5100 WOODRUFF KEY |
510A5100 |
from US $3.40 |
||
|
13001
|
13001
13001-2125 Piston-engine,stdPiston-engine,std; |
13001-2125 |
US $39.46 |
||
| replacement | |||||
|
13001
|
13001
13001-2207 PISTON-ENGINEPiston-engine,std; |
13001-2207 |
from US $51 |
||
|
13002
|
13002
13002-2069 PIN-PISTON |
13002-2069 |
from US $8.09 |
||
|
13008
|
13008
13008-6007 PISTON RING SET-STDRing-set-piston,std; |
13008-6007 |
from US $35.90 |
||
|
13025
|
13025
13025-2074 PISTON RING SET- .50Ring-set-piston l,0.50; |
13025-2074 |
from US $38.10 |
||
|
13029
|
13029
13029-2101 PISTON-ENGINE L,0.50Piston-engine l,0.50; |
13029-2101 |
US $48.58 |
||
| replacement | |||||
|
13029
|
13029
13029-0034 PISTON-ENGINE L,0.50Piston-engine l,0.50; |
13029-0034 |
from US $51 |
||
|
13031
|
13031
13031-2060 Crankshaft-comp |
13031-2060 |
from US $390.18 |
||
|
13042
|
13042
13042-6009 WEIGHT |
13042-6009 |
from US $88.49 |
||
|
13107
|
13107
13107-2088 SHAFT-GUIDE |
13107-2088 |
from US $15.55 |
||
|
13251
|
13251
13251-6034 ROD-ASSY-CONNECTING,URod-assy-connecting,u/s=0.50; |
13251-6034 |
US $72.88 |
||
| replacement | |||||
|
13251
|
13251
13251-2079 ROD-ASSY-CONNECTING,URod-assy-connecting,u/s=0.50; |
13251-2079 |
from US $53.65 |
||
|
13251A
|
13251A
13251-6056 ROD-ASSY-CONNECTING |
13251-6056 |
US $72.34 |
||
| replacement | |||||
|
13251A
|
13251A
13251-2077 ROD-ASSY-CONNECTING |
13251-2077 |
from US $46.97 |
||
|
46102
|
46102
46102-6004 ROD |
46102-6004 |
from US $32.50 |
||
|
59051
|
59051
59051-2097 GEAR-SPUR |
59051-2097 |
from US $17.11 |
||
|
59056
|
59056
59056-2993 GEAR-HELICAL |
59056-2993 |
from US $36.88 |
||
|
92002
|
92002
92002-2053 BOLT, CONNECTING ROD |
92002-2053 |
from US $1.71 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
Nut,flanged,6mm; |
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1367 |
from US $3.01 |
||
|
92025
|
92025
92025-2168 SHIM-T=1.13Shim,t=1.13; |
92025-2168 |
from US $3.11 |
||
|
92025A
|
92025A
92025-2169 SHIM-T=1.18Shim,t=1.18; |
92025-2169 |
from US $3.11 |
||
|
92025B
|
92025B
92025-2170 SHIM-T=1.23Shim,t=1.23; |
92025-2170 |
from US $3.11 |
||
|
92025C
|
92025C
92025-2171 SHIM-T=1.28Shim,t=1.28; |
92025-2171 |
from US $3.11 |
||
|
92025D
|
92025D
92025-2172 SHIM-T=1.33Shim,t=1.33; |
92025-2172 |
from US $3.11 |
||
|
92025E
|
92025E
92025-2173 SHIM-T=1.38Shim,t=1.38; |
92025-2173 |
from US $3.11 |
||
|
92025F
|
92025F
92025-2174 SHIM-T=1.43Shim,t=1.43; |
92025-2174 |
from US $3.11 |
||
|
92025G
|
92025G
92025-2175 SHIM-T=1.48Shim,t=1.48; |
92025-2175 |
from US $3.11 |
||
|
92025H
|
92025H
92025-2207 SHIM-T=1.53Shim,t=1.53; |
92025-2207 |
from US $3.11 |
||
|
92026
|
92026
92026-2052 SPACER |
92026-2052 |
from US $9.65 |
||
|
92036
|
92036
92036-008 CIRCLIP PISTON PINRing-snap,piston pin; |
92036-008 |
from US $0.82 |
||
|
92055
|
92055
92055-2072 O-RING |
92055-2072 |
from US $1.15 |
||
|
92141
|
92141
92141-2090 BEARING-PLAIN |
92141-2090 |
from US $5.13 |
||
