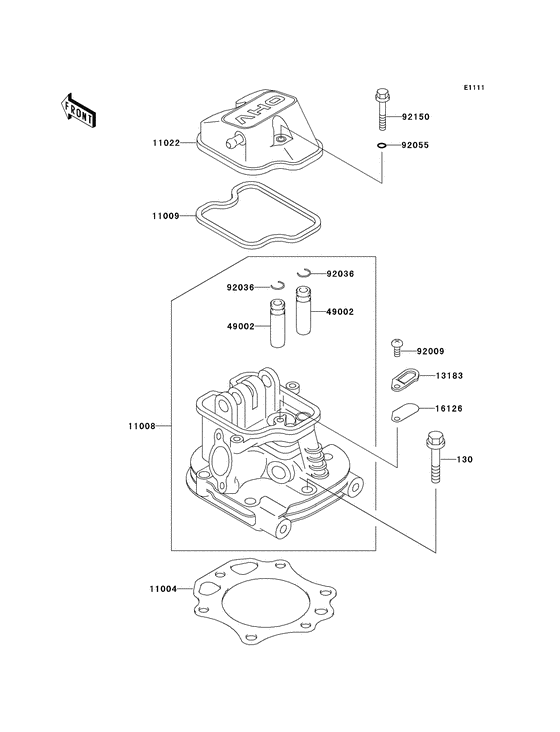

Cylinder head Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C7
- Engine Capacity
- 286
- Year
- 2004
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130T0845 BOLT-FLANGED,8X45 |
130T0845 |
US $1.21 |
||
| replacement | |||||
|
130
|
130
130CA0845 BOLT-FLANGED,8X45 |
130CA0845 |
from US $1.40 |
||
|
11004
|
11004
11004-2138 GASKET-HEAD |
11004-2138 |
from US $13.18 |
||
|
11008
|
11008
11008-2129 HEAD-COMP-CYLINDER |
11008-2129 |
US $254.05 |
||
| replacement | |||||
|
11008
|
11008
11008-2158 HEAD-COMP-CYLINDER |
11008-2158 |
from US $178.85 |
||
|
11009
|
11009
11009-2829 GASKET-ROCKER CASEGasket,rocker case; |
11009-2829 |
from US $7.93 |
||
|
11022
|
11022
11022-6001 CASE-ROCKER |
11022-6001 |
from US $24.72 |
||
|
13183
|
13183
13183-2299 PLATE |
13183-2299 |
from US $1.40 |
||
|
16126
|
16126
16126-2107 VALVE |
16126-2107 |
from US $0.97 |
||
|
49002
|
49002
49002-2101 GUIDE-VALVE |
49002-2101 |
from US $14.16 |
||
|
92009
|
92009
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92036
|
92036
92036-023 CIRCLIP-VALVERing-snap,valve guide; |
92036-023 |
from US $0.82 |
||
|
92055
|
92055
92055-1343 RING-ORing-o,5.5x1.5; |
92055-1343 |
from US $0.79 |
||
| replacement | |||||
|
92055
|
92055
92055-1339 RING-O,5.5X1.5Ring-o,5.5x1.5; |
92055-1339 |
from US $2.85 |
||
|
92150
|
92150
92150-2145 BOLT-6X35Bolt,6x35; |
92150-2145 |
from US $1.05 |
||
