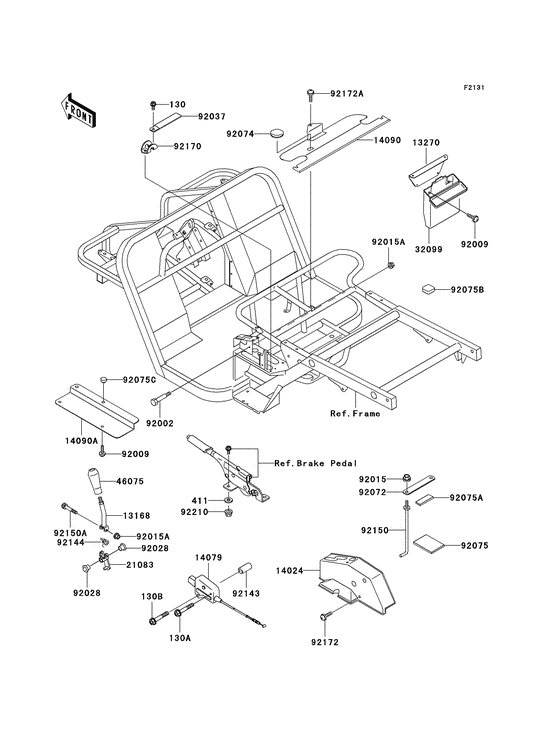

Frame fittings Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C7
- Engine Capacity
- 286
- Year
- 2004
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
Bolt-flanged,6x14,black; |
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14Bolt-flanged,6x14,black; |
130BB0614 |
from US $1.11 |
||
|
130A
|
130A
130J0650 BOLT-FLANGED,6X50Bolt-flanged,6x50,black; |
130J0650 |
US $2.50 |
||
| replacement | |||||
|
130A
|
130A
130BB0650 BOLT-FLANGED,6X50Bolt-flanged,6x50,black; |
130BB0650 |
US $3.30 |
||
|
130B
|
130B
130J0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130J0850 |
from US $1.90 |
||
| replacement | |||||
|
130B
|
130B
130BB0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130BB0850 |
from US $1.40 |
||
|
411
|
411
411B0800
WASHER PLAIN 8MM
Washer-plain,8mm; |
411B0800 |
— | ||
| replacement | |||||
|
411
|
411
411AA0800 WASHER-PLAINWasher-plain,8mm; |
411AA0800 |
from US $0.72 |
||
|
13168
|
13168
13168-1534 LEVER,SHIFTLever,shift; |
13168-1534 |
from US $32.20 |
||
|
13270
|
13270
13270-1698 PLATE,MANUALBOXPlate,manual box; |
13270-1698 |
US $12.82 |
||
|
14024
|
14024
14024-1985 COVER,SHAFT & BATTERYCover,shift&battery; |
14024-1985 |
US $122 |
||
|
14079
|
14079
14079-1112 HOLDER-ASSY,DIFF LOCKHolder-assy,diff lock; |
14079-1112 |
from US $98.59 |
||
|
14090
|
14090
14090-1120 COVER,SEATCover,seat; |
14090-1120 |
from US $237.95 |
||
|
14090A
|
14090A
14090-1744 COVER,FRONT UNDERCover,front under; |
14090-1744 |
US $23.94 |
||
|
21083
|
21083
21083-1091 ARM,SHIFT LEVERArm,shift lever; |
21083-1091 |
from US $28.61 |
||
|
32099
|
32099
32099-1039 CASE,TOOLCase,tool; |
32099-1039 |
US $27.22 |
||
|
46075
|
46075
46075-1075
GRIP,SHIFT LEVER
Grip,shift lever; |
46075-1075 |
— | ||
|
92002
|
92002
92002-1984 BOLT |
92002-1984 |
from US $5.28 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92015
|
92015
92015-1406 NUT,8MMNut,flanged,8mm; |
92015-1406 |
from US $2.85 |
||
|
92015A
|
92015A
92015-1675 NUTNut,lock,flanged,6mm; |
92015-1675 |
from US $2.69 |
||
|
92028
|
92028
92028-1507 BUSHING |
92028-1507 |
from US $3.02 |
||
|
92037
|
92037
92037-1069
CLAMP
Clamp,l=60; |
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMPClamp,l=60; |
92171-0652 |
from US $1.27 |
||
|
92072
|
92072
92072-1233 BAND,BATTERYBand,battery; |
92072-1233 |
US $12.65 |
||
| replacement | |||||
|
92072
|
92072
92072-7507 BAND,BATTERYBand,battery; |
92072-7507 |
from US $13.16 |
||
|
92074
|
92074
92074-004
PLUG CHAIN CASE
Plug,34x1; |
92074-004 |
— | ||
|
92075
|
92075
92075-1076 DAMPER,BATTERY BASE |
92075-1076 |
from US $5.70 |
||
|
92075A
|
92075A
92075-1214 DAMPER,ENGINE GUARD |
92075-1214 |
from US $2.65 |
||
|
92075B
|
92075B
92075-1882 DAMPER,SEAT |
92075-1882 |
from US $5.39 |
||
|
92075C
|
92075C
92075-281 DAMPER RUBBER |
92075-281 |
from US $3.64 |
||
|
92143
|
92143
92143-1162 COLLAR,11.3X15.9X36Collar,11.3x15.9x36; |
92143-1162 |
from US $2.45 |
||
|
92144
|
92144
92144-1175 SPRING |
92144-1175 |
US $3.57 |
||
|
92150
|
92150
92150-1293 BOLT,BATTERYBolt,battery; |
92150-1293 |
from US $6.22 |
||
|
92150A
|
92150A
92150-1393 BOLTBolt,socket,6x35; |
92150-1393 |
from US $3.89 |
||
|
92170
|
92170
92170-1210 CLAMPClamp,shift cable; |
92170-1210 |
from US $2.50 |
||
|
92172
|
92172
92172-0004 SCREW,6X14Screw,6x14; |
92172-0004 |
from US $1.27 |
||
|
92172A
|
92172A
92172-0005 SCREW, 6X10Screw,6x10; |
92172-0005 |
US $2.99 |
||
|
92210
|
92210
92210-0005 NUT,FLANGED,LOCK,8MMNut,flanged,lock,8mm; |
92210-0005 |
from US $2.30 |
||
