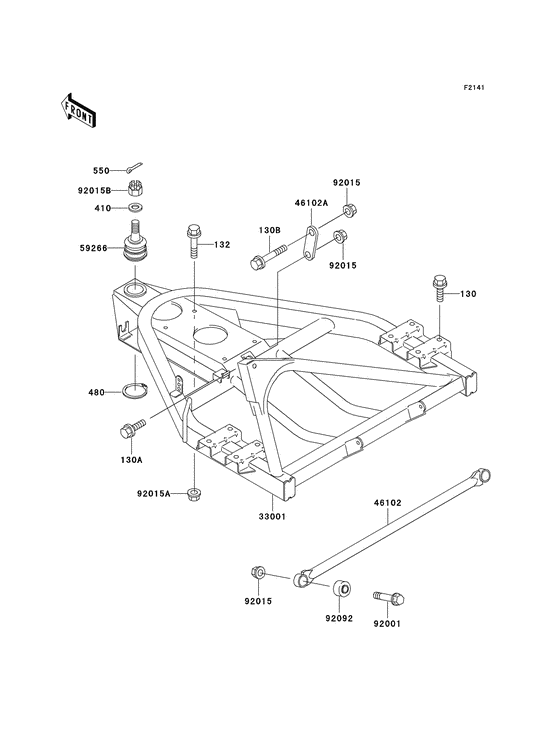

Swingarm Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C7
- Engine Capacity
- 286
- Year
- 2004
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J1016 BOLT-FLANGED,10X16Bolt-flanged,10x16; |
130J1016 |
US $3.15 |
||
| replacements | |||||
|
130
|
130
130CB1016 BOLT-FLANGEDBolt-flanged,10x16; |
130CB1016 |
from US $1.56 |
||
|
130
|
130
130BB1016 BOLT-FLANGED,10X16Bolt-flanged,10x16; |
130BB1016 |
from US $1.56 |
||
|
130A
|
130A
130J1020
BOLT-FLANGED
Bolt-flanged,10x20; |
130J1020 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB1020 BOLT-FLANGEDBolt-flanged,10x20; |
130BB1020 |
from US $1.40 |
||
|
130B
|
130B
130J1055 BOLT-FLANGED,10X55Bolt-flanged,10x55; |
130J1055 |
from US $2.06 |
||
| replacement | |||||
|
130B
|
130B
130BB1055 BOLT-FLANGED,10X55Bolt-flanged,10x55; |
130BB1055 |
from US $1.74 |
||
|
132
|
132
132G0835 BOLT,8X35 |
132G0835 |
US $36.70 |
||
| replacement | |||||
|
132
|
132
132BA0835 BOLT,8X35 |
132BA0835 |
from US $3.01 |
||
|
410
|
410
410B1400 WASHER PLAIN 14MMWasher-plain-small,14mm; |
410B1400 |
from US $1.27 |
||
| replacement | |||||
|
410
|
410
410AA1400 WASHER-PLAIN-SMALL,14Washer-plain-small,14mm; |
410AA1400 |
from US $0.95 |
||
|
480
|
480
480J3800 CIRCLIP, 38MMCirclip-type-c,38mm; |
480J3800 |
from US $1.56 |
||
|
550
|
550
550D3230 PIN,COTTERPin-cotter,3.2x30; |
550D3230 |
US $1.67 |
||
| replacement | |||||
|
550
|
550
550AA3230 PIN,COTTERPin-cotter,3.2x30; |
550AA3230 |
from US $0.94 |
||
|
33001
|
33001
33001-1373 ARM COMP SWING |
33001-1373 |
US $537.64 |
||
|
46102
|
46102
46102-1297 ROD |
46102-1297 |
from US $93.45 |
||
|
46102A
|
46102A
46102-1298 ROD |
46102-1298 |
US $7.36 |
||
|
59266
|
59266
59266-1087 JOINT-BALL |
59266-1087 |
from US $40.44 |
||
|
92001
|
92001
92001-1702 BOLT,FLANGED,10X44Bolt,flanged,10x44; |
92001-1702 |
from US $5.13 |
||
|
92015
|
92015
92015-1335 NUT,LOCK,FLANGED,10MMNut,flanged,10mm; |
92015-1335 |
from US $3.15 |
||
| replacement | |||||
|
92015
|
92015
92210-0276 NUT,LOCK,FLANGED,10MMNut,flanged,10mm; |
92210-0276 |
from US $1.43 |
||
|
92015A
|
92015A
92015-1432 NUT,8MMNut,8mm; |
92015-1432 |
from US $3.80 |
||
|
92015B
|
92015B
92015-1841 NUT,CASTLE,14MMNut,castle,14mm; |
92015-1841 |
from US $5.13 |
||
|
92092
|
92092
92092-1072 BUSHING-RUBBER |
92092-1072 |
from US $7.16 |
||
