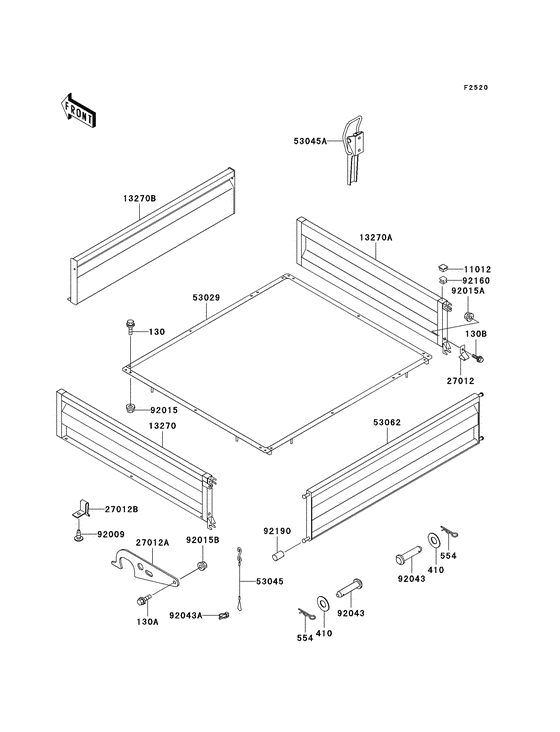

Carrier Diagram Kawasaki KAF300 Mule 520
- Model code
- KAF300-D1
- Engine Capacity
- 286
- Year
- 2000
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 520
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0616
BOLT-FLANGED,6X16
Bolt-flanged,6x16,black; |
130J0616 |
— | ||
| replacement | |||||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16Bolt-flanged,6x16,black; |
130BB0616 |
from US $0.95 |
||
|
130A
|
130A
130J0640
BOLT-FLANGED
Bolt-flanged,6x40,black; |
130J0640 |
— | ||
| replacement | |||||
|
130A
|
130A
130CB0640 BOLT-FLANGEDBolt-flanged,6x40,black; |
130CB0640 |
from US $1.40 |
||
|
130B
|
130B
130J0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130J0850 |
from US $1.90 |
||
| replacement | |||||
|
130B
|
130B
130BB0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130BB0850 |
from US $1.40 |
||
|
410
|
410
410B1200 WASHER PLAIN 12MMWasher-plain-small,12mm; |
410B1200 |
from US $0.95 |
||
| replacement | |||||
|
410
|
410
410AA1200 WASHER-PLAIN-SMALL,12Washer-plain-small,12mm; |
410AA1200 |
from US $0.95 |
||
|
554
|
554
554A1200 PIN,SNAP,12M/MPin-snap,12mm; |
554A1200 |
from US $2.85 |
||
| replacement | |||||
|
554
|
554
554DA1200 PIN,SNAP,12M/MPin-snap,12mm; |
554DA1200 |
from US $2.17 |
||
|
11012
|
11012
11012-1784 CAP |
11012-1784 |
from US $7.62 |
||
|
13270
|
13270
13270-1090-B1 PLATE-CARRIER,SIDE,LHPlate,carrier,side,lh,f.red; |
13270-1090-B1 |
US $175 |
||
|
13270A
|
13270A
13270-1092-B1 PLATE-CARRIER,SIDE,RHPlate,carrier,side,rh,f.red; |
13270-1092-B1 |
US $175 |
||
|
13270B
|
13270B
13270-1677-B1 PLATE,CARRIER,FRF.REDPlate,carrier,fr,f.red; |
13270-1677-B1 |
from US $158.13 |
||
|
27012
|
27012
27012-1406 HOOK,TAIL GATEHook,tail gate; |
27012-1406 |
US $4.97 |
||
| replacement | |||||
|
27012
|
27012
27012-0022 HOOK,TAIL GATEHook,tail gate; |
27012-0022 |
US $8.14 |
||
|
27012A
|
27012A
27012-1444 HOOK CARRIERHook,carrier; |
27012-1444 |
US $13.68 |
||
|
27012B
|
27012B
27012-1445 HOOK,CARRIERHook,carrier; |
27012-1445 |
from US $8.24 |
||
|
53029
|
53029
53029-1192-B1 CARRIER,F.REDCarrier,f.red; |
53029-1192-B1 |
US $1,471.21 |
||
|
53045
|
53045
53045-1060 HOOK-ASSY,TALE GATEHook-assy,tale gate; |
53045-1060 |
from US $25.04 |
||
|
53045A
|
53045A
53045-1063 HOOK-ASSY |
53045-1063 |
from US $16.65 |
||
|
53062
|
53062
53062-1005-B1 GATE-TAIL, F.REDGate-tail,f.red; |
53062-1005-B1 |
US $281.23 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92015
|
92015
92015-1386 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1386 |
from US $3.48 |
||
| replacement | |||||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1408 NUT,FLANGED,8MMNut,flanged,8mm; |
92015-1408 |
from US $4.34 |
||
| replacement | |||||
|
92015A
|
92015A
92210-0004 NUT,FLANGED,8MMNut,flanged,8mm; |
92210-0004 |
from US $3.80 |
||
|
92015B
|
92015B
92015-1675 NUTNut,lock,flanged,6mm; |
92015-1675 |
from US $2.69 |
||
|
92043
|
92043
92043-1451 PIN,12X54Pin,12x54; |
92043-1451 |
from US $5.90 |
||
|
92043A
|
92043A
92043-1490 PIN |
92043-1490 |
from US $8.71 |
||
|
92160
|
92160
92160-1191 DAMPER |
92160-1191 |
from US $3.89 |
||
|
92190
|
92190
92190-1467
TUBE,8X10X15
Tube,8x10x15; |
92190-1467 |
— | ||
