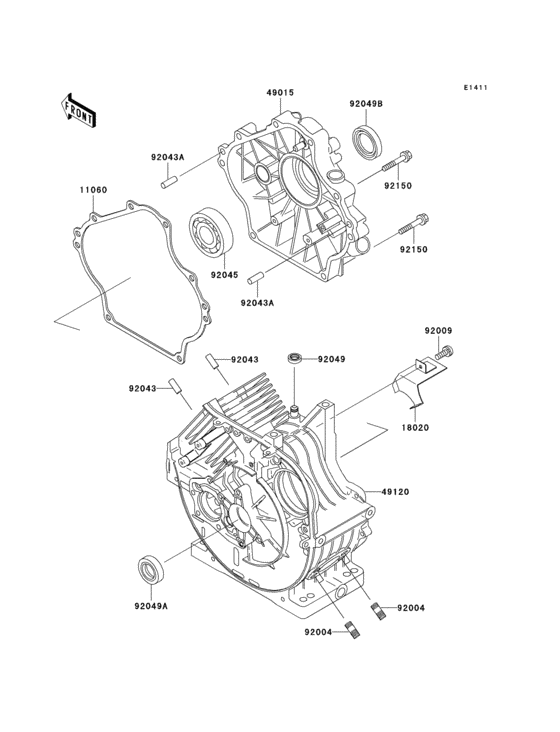

Crankcase Diagram Kawasaki KAF300 Mule 520
- Model code
- KAF300-D2
- Engine Capacity
- 286
- Year
- 2001
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 520
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11060
|
11060
11060-2122 GASKET |
11060-2122 |
from US $9.81 |
||
|
18020
|
18020
18020-2072 BAFFLE |
18020-2072 |
from US $5.09 |
||
|
49015
|
49015
49015-6192 COVER-CRANKCASE |
49015-6192 |
US $305.42 |
||
|
49120
|
49120
49120-6062 CRANKCASE-COMP |
49120-6062 |
from US $497.05 |
||
|
92004
|
92004
92004-2083 STUD |
92004-2083 |
from US $1.40 |
||
|
92009
|
92009
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92043
|
92043
92043-1037 PIN,DOWEL,10X8.2X14 |
92043-1037 |
from US $0.97 |
||
|
92043A
|
92043A
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92045
|
92045
92045-2168 BEARING-BALL,6306JRCM |
92045-2168 |
from US $20.22 |
||
|
92049
|
92049
92049-2097 SEAL-OIL |
92049-2097 |
from US $1.56 |
||
|
92049A
|
92049A
92049-2199 SEAL-OIL |
92049-2199 |
from US $3.57 |
||
|
92049B
|
92049B
92049-2220 SEAL-OIL |
92049-2220 |
from US $7.78 |
||
|
92150
|
92150
92150-2252 BOLT,8X45 |
92150-2252 |
from US $1.71 |
