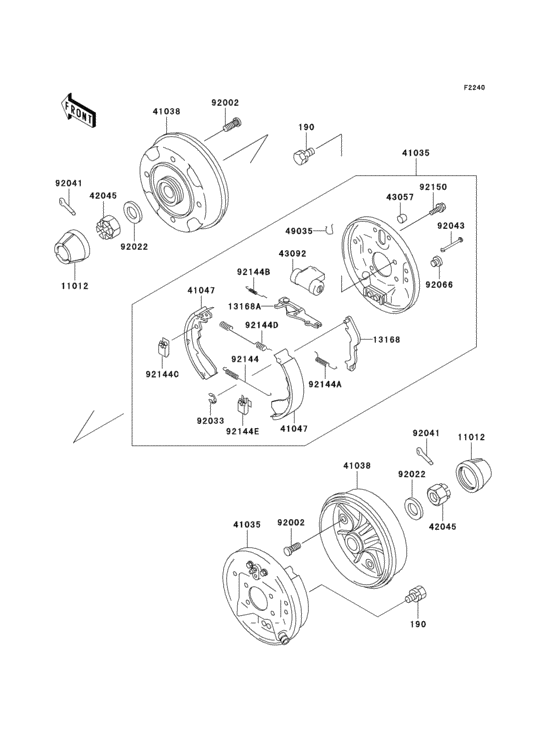

Rear hubs/brakes Diagram Kawasaki KAF300 Mule 520
- Model code
- KAF300-D2
- Engine Capacity
- 286
- Year
- 2001
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 520
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
190
|
190
190H1016 BOLT-UPSET-WS,10X16 |
190H1016 |
US $3.24 |
||
| replacement | |||||
|
190
|
190
190BA1016 BOLT-UPSET-WS,10X16 |
190BA1016 |
from US $1.40 |
||
|
11012
|
11012
11012-1969 CAP,WHEEL |
11012-1969 |
from US $5.33 |
||
|
13168
|
13168
13168-1481 LEVER |
13168-1481 |
US $10.11 |
||
|
13168A
|
13168A
13168-1482 LEVER |
13168-1482 |
US $18.50 |
||
|
41035
|
41035
41035-1283 PANEL-ASSY-BRAKE,RR |
41035-1283 |
from US $387.24 |
||
|
41038
|
41038
41038-1239 DRUM,REAR BRAKE |
41038-1239 |
from US $220.84 |
||
|
41047
|
41047
41047-1052 SHOE-ASSY-BRAKE,RR |
41047-1052 |
from US $19.30 |
||
|
42045
|
42045
42045018 NUT CASTLE,18MM |
42045018 |
from US $7.76 |
||
|
43057
|
43057
43057-1054 CAP-BREATHER |
43057-1054 |
from US $3.38 |
||
|
43092
|
43092
43092-1058 CYLINDER |
43092-1058 |
from US $89.42 |
||
|
49035
|
49035
49035-1058
PIN-SPRING
|
49035-1058 |
— | ||
|
92002
|
92002
92002-1388 BOLT,10X30 |
92002-1388 |
from US $5.13 |
||
|
92022
|
92022
92022-1658 WASHER,18.3X34X4.5 |
92022-1658 |
from US $3.17 |
||
|
92033
|
92033
92033-1279 RING-SNAP |
92033-1279 |
from US $2.33 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35 |
92041-1053 |
from US $2.33 |
||
|
92043
|
92043
92043-1460 PIN,SHOE HOLD |
92043-1460 |
from US $6.27 |
||
|
92066
|
92066
92066-1365 PLUG |
92066-1365 |
from US $2.95 |
||
|
92144
|
92144
92144-1613 SPRING,RETURN,LWR |
92144-1613 |
from US $9.72 |
||
|
92144A
|
92144A
92144-1614 SPRING |
92144-1614 |
from US $3.57 |
||
|
92144B
|
92144B
92144-1615 SPRING |
92144-1615 |
from US $2.95 |
||
|
92144C
|
92144C
92144-1616 SPRING,SHOE HOLD |
92144-1616 |
US $5.13 |
||
|
92144D
|
92144D
92144-1851 SPRING,RETURN,UPP |
92144-1851 |
US $5.28 |
||
|
92144E
|
92144E
92144-1858 SPRING,SHOE HOLD |
92144-1858 |
US $5.13 |
||
|
92150
|
92150
92150-1664 BOLT,FLANGED,6X10 |
92150-1664 |
from US $2.65 |
||
