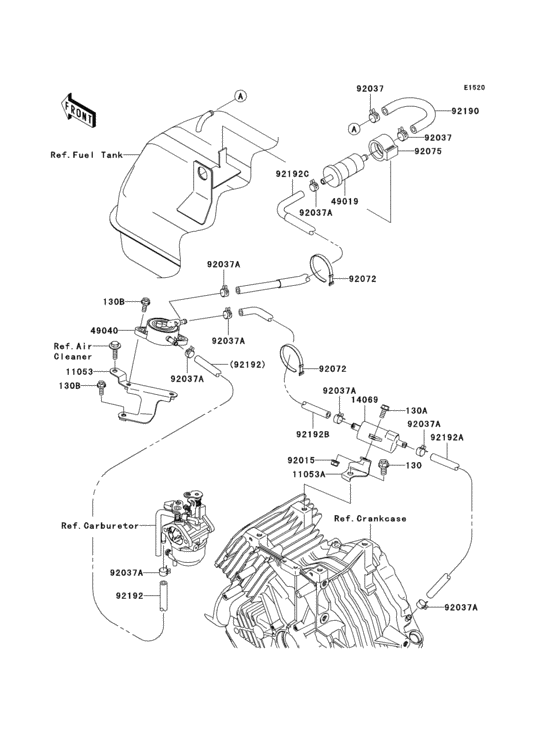

Fuel Pump Diagram Kawasaki KAF400 Mule 610 4X4
- Model code
- KAF400-A1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0816 BOLT-FLANGED |
130B0816 |
US $6.70 |
||
| replacements | |||||
|
130
|
130
130BA0816 BOLT-FLANGED |
130BA0816 |
from US $1.11 |
||
|
130
|
130
130AA0816 BOLT-FLANGED |
130AA0816 |
from US $1.24 |
||
|
130A
|
130A
130G0614 BOLT-FLANGED,6X14 |
130G0614 |
from US $1.11 |
||
| replacement | |||||
|
130A
|
130A
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
130B
|
130B
130J0616
BOLT-FLANGED,6X16
|
130J0616 |
— | ||
| replacement | |||||
|
130B
|
130B
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.95 |
||
|
11053
|
11053
11053-1644 BRACKET,FUEL PUMP |
11053-1644 |
US $12.67 |
||
|
11053A
|
11053A
11053-1711 BRACKET,BREATHER |
11053-1711 |
from US $3.11 |
||
|
14069
|
14069
14069-0003 BREATHER |
14069-0003 |
US $19.13 |
||
|
49019
|
49019
49019-1055
FILTER-FUEL
|
49019-1055 |
— | ||
| replacement | |||||
|
49019
|
49019
49019-0032 Filter-fuel |
49019-0032 |
from US $20.17 |
||
|
49040
|
49040
49040-7001 Pump-fuel |
49040-7001 |
US $40.01 |
||
| replacement | |||||
|
49040
|
49040
49040-0769 Pump-fuel |
49040-0769 |
US $41.62 |
||
|
92015
|
92015
92015-1339 NUT,LOCK,FLANGED,6MM |
92015-1339 |
from US $1.84 |
||
|
92037
|
92037
92037-1181 CLAMP |
92037-1181 |
from US $3.01 |
||
|
92037A
|
92037A
92037-1505 CLAMP,TUBE |
92037-1505 |
from US $3.17 |
||
|
92072
|
92072
92072-056 BAND,WIRING HARNESS |
92072-056 |
from US $3.17 |
||
|
92075
|
92075
92075-1853 DAMPER |
92075-1853 |
from US $8.08 |
||
|
92190
|
92190
92190-1104 TUBE,7.5X13.5X680 |
92190-1104 |
US $27.92 |
||
| replacement | |||||
|
92190
|
92190
92059-1277 TUBE,7.5X13.5X680 |
92059-1277 |
from US $17.73 |
||
|
92192
|
92192
92192-0201 TUBE |
92192-0201 |
US $6.37 |
||
|
92192A
|
92192A
92192-0204 TUBE |
92192-0204 |
US $8.23 |
||
|
92192B
|
92192B
92192-0221 TUBE,PUMP-BREATHER |
92192-0221 |
US $14.76 |
||
|
92192C
|
92192C
92192-0222 TUBE,5.8X10.8X515,GUA |
92192-0222 |
US $10.24 |
||
