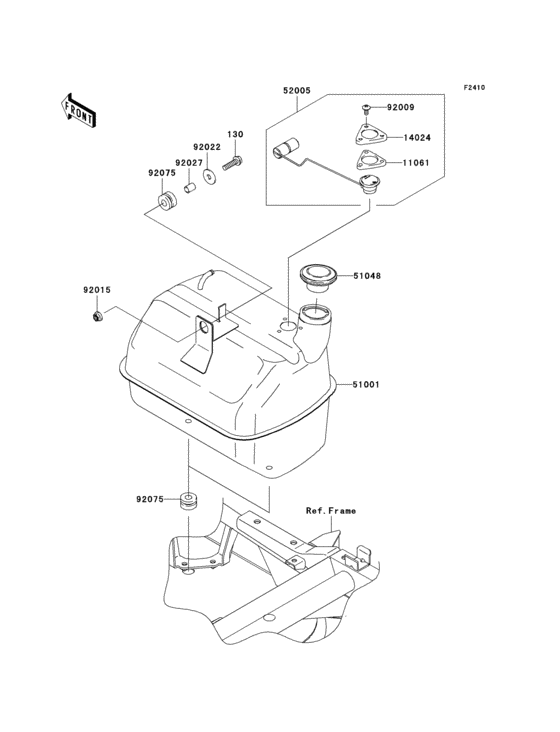

Fuel tank Diagram Kawasaki KAF400 Mule 610 4X4
- Model code
- KAF400-A1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0830 BOLT-FLANGED |
130D0830 |
US $2.59 |
||
| replacements | |||||
|
130
|
130
130BA0830 BOLT-FLANGED,8X30 |
130BA0830 |
from US $1.43 |
||
|
130
|
130
130AA0830 BOLT-FLANGED |
130AA0830 |
from US $1.14 |
||
|
11061
|
11061
11061-0120 GASKET,FUEL GAUGE |
11061-0120 |
from US $9.17 |
||
|
14024
|
14024
14024-1697 Cover,fuel gauge |
14024-1697 |
US $29.83 |
||
| replacements | |||||
|
14024
|
14024
52005-0734 GAUGE,FUEL |
52005-0734 |
from US $27.53 |
||
|
14024
|
14024
52005-0714 GAUGE,FUEL |
52005-0714 |
US $42.30 |
||
|
51001
|
51001
51001-0073 TANK-COMP-FUEL |
51001-0073 |
US $398.68 |
||
| replacement | |||||
|
51001
|
51001
51001-0093 TANK-COMP-FUEL |
51001-0093 |
US $483.38 |
||
|
51048
|
51048
51048-0005 CAP-ASSY-TANK,FUEL |
51048-0005 |
from US $39.97 |
||
|
52005
|
52005
52005-0012 Superceded |
52005-0012 |
US $46.75 |
||
| replacement | |||||
|
52005
|
52005
52005-0730 GAUGE,FUEL |
52005-0730 |
from US $25.04 |
||
|
92009
|
92009
92009-1541 SCREW |
92009-1541 |
from US $5.75 |
||
|
92015
|
92015
92015-1397 NUT,FLANGED,8MM |
92015-1397 |
from US $3.37 |
||
|
92022
|
92022
92022-1632 WASHER,9X28X2.3 |
92022-1632 |
from US $2.65 |
||
|
92027
|
92027
92027-1081 COLLAR |
92027-1081 |
from US $5.60 |
||
|
92075
|
92075
92075-1736 DAMPER |
92075-1736 |
from US $3.96 |
||
