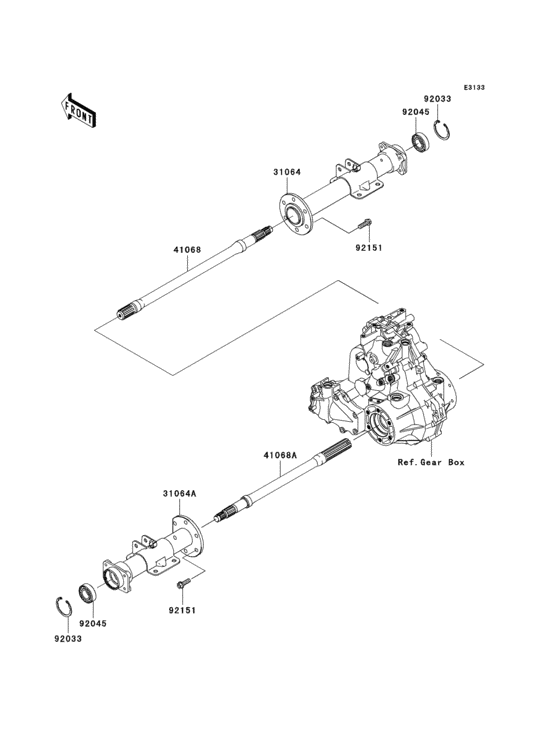

Rear axle Diagram Kawasaki KAF400 Mule 610 4X4
- Model code
- KAF400-A1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31064
|
31064
31064-0012 PIPE-COMP,RH |
31064-0012 |
US $423.59 |
||
| replacement | |||||
|
31064
|
31064
31064-0037 PIPE-COMP,RH |
31064-0037 |
US $423.59 |
||
|
31064A
|
31064A
31064-0013 PIPE-COMP,LH |
31064-0013 |
US $423.59 |
||
| replacement | |||||
|
31064A
|
31064A
31064-0038 PIPE-COMP,LH |
31064-0038 |
US $545.12 |
||
|
41068
|
41068
41068-0021 AXLE,RH |
41068-0021 |
from US $185.07 |
||
| replacement | |||||
|
41068
|
41068
41068-0036 AXLE,RH |
41068-0036 |
from US $169.52 |
||
|
41068A
|
41068A
41068-0022 AXLE,LH |
41068-0022 |
US $253.91 |
||
| replacement | |||||
|
41068A
|
41068A
41068-0037 AXLE,LH |
41068-0037 |
from US $169.52 |
||
|
92033
|
92033
92033-2149 RING-SNAP |
92033-2149 |
from US $2.33 |
||
|
92045
|
92045
92045-0044 BEARING-BALL,6205A26D |
92045-0044 |
US $18.36 |
||
| replacement | |||||
|
92045
|
92045
92045-1163 BEARING-BALL |
92045-1163 |
from US $29.38 |
||
|
92151
|
92151
92151-2142 BOLT,10X28 |
92151-2142 |
from US $1.09 |
||
