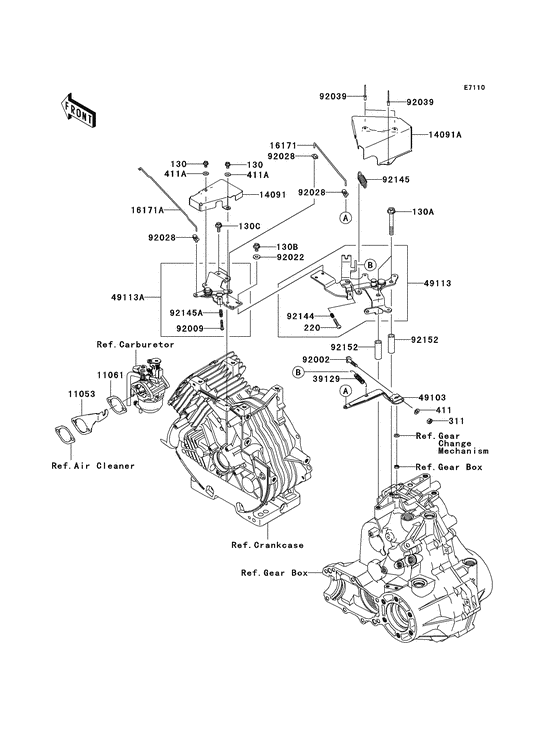

Control Diagram Kawasaki KAF400 Mule 600
- Model code
- KAF400-B1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- USA
- Power
- 12,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0508
BOLT-FLANGED
Bolt-flanged,5x8; |
130G0508 |
— | ||
| replacement | |||||
|
130
|
130
130BA0508 BOLT-FLANGEDBolt-flanged,5x8; |
130BA0508 |
from US $0.95 |
||
|
130A
|
130A
130G0860 BOLT-FLANGEDBolt-flanged,8x60; |
130G0860 |
from US $1.24 |
||
| replacement | |||||
|
130A
|
130A
130BA0860 BOLT-FLANGEDBolt-flanged,8x60; |
130BA0860 |
from US $1.56 |
||
|
130B
|
130B
130J0610
BOLT-FLANGED,6X10
Bolt-flanged,6x10; |
130J0610 |
— | ||
| replacement | |||||
|
130B
|
130B
130BB0610 BOLT-FLANGED,6X10Bolt-flanged,6x10; |
130BB0610 |
from US $1.11 |
||
|
130C
|
130C
130J0614
BOLT-FLANGED,6X14
Bolt-flanged,6x14; |
130J0614 |
— | ||
| replacement | |||||
|
130C
|
130C
130BB0614 BOLT-FLANGED,6X14Bolt-flanged,6x14; |
130BB0614 |
from US $1.11 |
||
|
220
|
220
220B0522 SCREW-PAN-CROSScrew-pan-cros,5x22; |
220B0522 |
US $0.95 |
||
| replacement | |||||
|
220
|
220
220AA0522 SCREW-PAN-CROSScrew-pan-cros,5x22; |
220AA0522 |
from US $0.82 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
Nut-hex,6mm; |
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MMNut-hex,6mm; |
311AA0600 |
from US $0.63 |
||
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1Washer-plain,6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer-plain,6mm; |
411AA0600 |
from US $2.13 |
||
|
411A
|
411A
411F0500 WASHER-PLAINWasher-plain,5mm,black; |
411F0500 |
from US $0.56 |
||
| replacement | |||||
|
411A
|
411A
411AB0500 WASHER-PLAINWasher-plain,5mm,black; |
411AB0500 |
from US $1.24 |
||
|
11053
|
11053
11053-7026 BRACKET |
11053-7026 |
US $3.83 |
||
|
11061
|
11061
11061-7026 GASKET,CHOKE |
11061-7026 |
US $1.51 |
||
|
14091
|
14091
14091-0401 COVER,FRCover,fr; |
14091-0401 |
US $15.11 |
||
|
14091A
|
14091A
14091-0402 COVER,RRCover,rr; |
14091-0402 |
US $15.11 |
||
|
16171
|
16171
16171-0007 LINK |
16171-0007 |
from US $3.11 |
||
|
16171A
|
16171A
16171-2104 LINK |
16171-2104 |
US $11.63 |
||
| replacement | |||||
|
16171A
|
16171A
16171-0030 LINK |
16171-0030 |
from US $13.58 |
||
|
39129
|
39129
39129-0006 SPRING-GOVERNOR |
39129-0006 |
from US $4.35 |
||
|
49103
|
49103
49103-1055 ARM-GOVERNOR |
49103-1055 |
from US $9.65 |
||
|
49113
|
49113
49113-0004 PANEL-COMP-CONTROL |
49113-0004 |
US $94.77 |
||
| replacement | |||||
|
49113
|
49113
49113-0006 PANEL-COMP-CONTROL |
49113-0006 |
from US $61.11 |
||
|
49113A
|
49113A
49113-2196 PANEL-COMP-CONTROL |
49113-2196 |
US $28.80 |
||
| replacement | |||||
|
49113A
|
49113A
49113-0046 PANEL-COMP-CONTROL |
49113-0046 |
from US $33.85 |
||
|
92002
|
92002
92002-2269 BOLTBolt,6x28; |
92002-2269 |
from US $1.09 |
||
|
92009
|
92009
92009-7002 SCREW,4X30Screw,4x30; |
92009-7002 |
from US $0.62 |
||
|
92022
|
92022
92022-2373 WASHERWasher,6.2x15.0x1.2; |
92022-2373 |
from US $0.56 |
||
|
92028
|
92028
92028-2156 BUSHING,GOVERNORBushing,governor; |
92028-2156 |
from US $3.03 |
||
|
92039
|
92039
92039-1163 RIVET,BLIND,4.0X9.2Rivet,blind,4.0x9.2; |
92039-1163 |
from US $1.36 |
||
|
92144
|
92144
92144-2266 SPRING,RPM ADJUSTMENT |
92144-2266 |
from US $3.01 |
||
|
92145
|
92145
92145-0301 SPRING, RETURNSpring,return; |
92145-0301 |
from US $2.79 |
||
|
92145A
|
92145A
92145-7005 SPRING |
92145-7005 |
US $1.33 |
||
|
92152
|
92152
92152-7501 COLLAR,9.1X13.95X42Collar,9.1x13.95x42; |
92152-7501 |
from US $3.57 |
||
