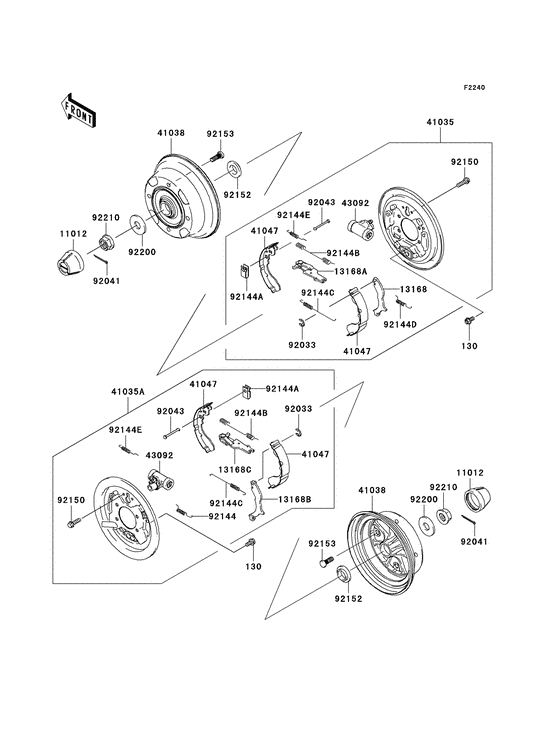

Rear hubs/brakes Diagram Kawasaki KAF400 Mule 600
- Model code
- KAF400-B1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- USA
- Power
- 12,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130T0816 BOLT-FLANGEDBolt-flanged,8x16; |
130T0816 |
US $1.67 |
||
| replacement | |||||
|
130
|
130
130CA0816 BOLT-FLANGEDBolt-flanged,8x16; |
130CA0816 |
from US $1.11 |
||
|
11012
|
11012
11012-1969 CAP,WHEELCap,wheel; |
11012-1969 |
from US $5.33 |
||
|
13168
|
13168
13168-0065 LEVER,FRONT BRAKE,LHLever,brake,lh; |
13168-0065 |
from US $10.11 |
||
|
13168A
|
13168A
13168-0066 LEVER,FRONT BRAKE,LHLever,brake,lh; |
13168-0066 |
from US $18.50 |
||
|
13168B
|
13168B
13168-0067 LEVER,FRONT BRAKE,RHLever,brake,rh; |
13168-0067 |
from US $10.11 |
||
|
13168C
|
13168C
13168-0068 LEVER,FRONT BRAKE,RHLever,brake,rh; |
13168-0068 |
from US $25.20 |
||
|
41035
|
41035
41035-0018 PANEL-ASSY-BRAKE,RR,LPanel-assy-brake,rr,lh; |
41035-0018 |
US $527.35 |
||
| replacement | |||||
|
41035
|
41035
41035-0070 PANEL-ASSY-BRAKE,RR,LPanel-assy-brake,rr,lh; |
41035-0070 |
from US $346.81 |
||
|
41035A
|
41035A
41035-0019 PANEL-ASSY-BRAKE,RR,RPanel-assy-brake,rr,rh; |
41035-0019 |
US $527.35 |
||
| replacement | |||||
|
41035A
|
41035A
41035-0071 PANEL-ASSY-BRAKE,RR,RPanel-assy-brake,rr,rh; |
41035-0071 |
from US $346.81 |
||
|
41038
|
41038
41038-0018 DRUM, REAR BRAKEDrum,rear brake; |
41038-0018 |
US $240.98 |
||
| replacement | |||||
|
41038
|
41038
41038-0583 Drum,rear BrakeDrum,rear brake; |
41038-0583 |
US $281.45 |
||
|
41047
|
41047
41047-1052 SHOE-ASSY-BRAKE,RRShoe-assy-brake,rr; |
41047-1052 |
from US $19.30 |
||
|
43092
|
43092
43092-0001 CYLINDER |
43092-0001 |
from US $86.93 |
||
|
92033
|
92033
92033-1279 RING-SNAP |
92033-1279 |
from US $2.33 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35Cotter,4.0x35; |
92041-1053 |
from US $2.33 |
||
|
92043
|
92043
92043-1460 PIN,SHOE HOLDPin,shoe hold; |
92043-1460 |
from US $6.27 |
||
|
92144
|
92144
92144-1608 SPRING,RHSpring,rh; |
92144-1608 |
from US $8.98 |
||
|
92144A
|
92144A
92144-1609 SPRING,SHOE HOLDSpring,shoe hold; |
92144-1609 |
from US $4.82 |
||
|
92144B
|
92144B
92144-1612 SPRING,RETURN,UPPSpring,return,upp; |
92144-1612 |
from US $4.98 |
||
|
92144C
|
92144C
92144-1613 SPRING,RETURN,LWRSpring,return,lwr; |
92144-1613 |
from US $9.72 |
||
|
92144D
|
92144D
92144-1614 SPRING |
92144-1614 |
from US $3.57 |
||
|
92144E
|
92144E
92144-1615 SPRING |
92144-1615 |
from US $2.95 |
||
|
92150
|
92150
92150-1664 BOLT,FLANGED,6X10Bolt,flanged,6x10; |
92150-1664 |
from US $2.65 |
||
|
92152
|
92152
92152-0284 COLLAR |
92152-0284 |
from US $3.73 |
||
|
92153
|
92153
92153-0920 BOLT,10X30Bolt,10x30; |
92153-0920 |
from US $5.13 |
||
|
92200
|
92200
92200-0130 WASHER,20.3X52X4.5Washer,20.3x52x4.5; |
92200-0130 |
from US $10.27 |
||
|
92210
|
92210
92210-2093 NUT,FLANGED,20MMNut,flanged,20mm; |
92210-2093 |
from US $5.76 |
||
