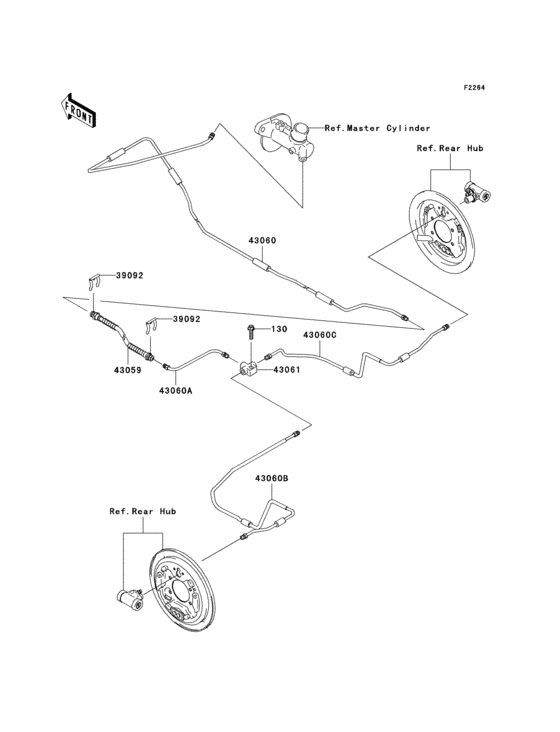

Rear brake piping Diagram Kawasaki KAF400 Mule 600
- Model code
- KAF400-B1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Power
- 12,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 600
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0830 BOLT-FLANGED |
130D0830 |
US $2.59 |
||
| replacements | |||||
|
130
|
130
130BA0830 BOLT-FLANGED,8X30 |
130BA0830 |
from US $1.43 |
||
|
130
|
130
130AA0830 BOLT-FLANGED |
130AA0830 |
from US $1.14 |
||
|
39092
|
39092
39092-1052 PIN-HAIR |
39092-1052 |
from US $5.28 |
||
|
43059
|
43059
43059-1665
HOSE BRAKE,CNT
|
43059-1665 |
— | ||
|
43060
|
43060
43060-0003 PIPE-BRAKE,M/CYLINDER |
43060-0003 |
from US $49.92 |
||
|
43060A
|
43060A
43060-0006 PIPE-BRAKE,RR,CNT |
43060-0006 |
from US $15.71 |
||
|
43060B
|
43060B
43060-0007 PIPE-BRAKE,RR,LH |
43060-0007 |
from US $33.75 |
||
|
43060C
|
43060C
43060-0008 PIPE-BRAKE,RR,RH |
43060-0008 |
from US $22.87 |
||
|
43061
|
43061
43061-1063 JOINT-BRAKE |
43061-1063 |
from US $32.34 |
||
