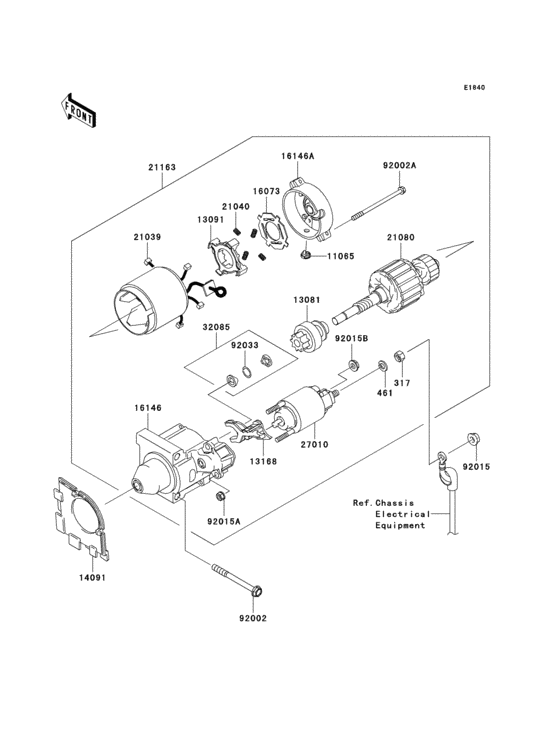

Starter motor Diagram Kawasaki KAF400 Mule 600
- Model code
- KAF400-B1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Power
- 12,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
317
|
317
317B0800 NUT-HEX-SMALL |
317B0800 |
from US $0.94 |
||
| replacement | |||||
|
317
|
317
317AA0800 NUT-HEX-SMALL |
317AA0800 |
from US $0.94 |
||
|
461
|
461
461F0800
WASHER-SPRING,8MM
|
461F0800 |
— | ||
| replacement | |||||
|
461
|
461
461DA0800 WASHER-SPRING,8MM |
461DA0800 |
from US $0.48 |
||
|
11065
|
11065
11065-2118 CAP |
11065-2118 |
from US $2.49 |
||
|
13081
|
13081
13081-2227 CLUTCH-ASSY |
13081-2227 |
from US $101.79 |
||
| replacement | |||||
|
13081
|
13081
13081-0710 Clutch-Assy |
13081-0710 |
US $114.10 |
||
|
13091
|
13091
13091-2068 HOLDER-BRUSH |
13091-2068 |
from US $14.77 |
||
|
13168
|
13168
13168-2148 LEVER |
13168-2148 |
from US $15.55 |
||
|
14091
|
14091
14091-7038 COVER |
14091-7038 |
US $6.16 |
||
| replacement | |||||
|
14091
|
14091
14093-0932 Cover |
14093-0932 |
US $8.86 |
||
|
16073
|
16073
16073-2098 INSULATOR |
16073-2098 |
from US $6.38 |
||
|
16146
|
16146
16146-7015 COVER-ASSY |
16146-7015 |
US $91.62 |
||
| replacement | |||||
|
16146
|
16146
16146-7025 COVER-ASSY |
16146-7025 |
from US $54.27 |
||
|
16146A
|
16146A
16146-7016 COVER-ASSY,END |
16146-7016 |
from US $38.88 |
||
|
21039
|
21039
21039-2059 BRUSH |
21039-2059 |
from US $13.06 |
||
|
21040
|
21040
21040-2052 SPRING-BRUSH |
21040-2052 |
from US $2.95 |
||
|
21080
|
21080
21080-2058 ARMATURE |
21080-2058 |
from US $216.17 |
||
|
21163
|
21163
21163-7020 Starter-electric |
21163-7020 |
US $535.75 |
||
| replacement | |||||
|
21163
|
21163
21163-7028 Starter-electric |
21163-7028 |
from US $518.65 |
||
|
27010
|
27010
27010-2122 SWITCH |
27010-2122 |
US $191.18 |
||
| replacement | |||||
|
27010
|
27010
27010-7005 SWITCH |
27010-7005 |
from US $114.15 |
||
|
32085
|
32085
32085-2097 STOPPER |
32085-2097 |
from US $14.40 |
||
|
92002
|
92002
92002-1794 BOLT,8X83 |
92002-1794 |
from US $3.96 |
||
|
92002A
|
92002A
92002-2277 BOLT |
92002-2277 |
from US $5.76 |
||
|
92015
|
92015
92015-1143 NUT-8MM |
92015-1143 |
from US $0.99 |
||
|
92015A
|
92015A
92015-2146 NUT |
92015-2146 |
from US $1.24 |
||
|
92015B
|
92015B
92015-2147 NUT |
92015-2147 |
from US $1.71 |
||
|
92033
|
92033
92033-2081 RING-SNAP |
92033-2081 |
from US $2.65 |
||
