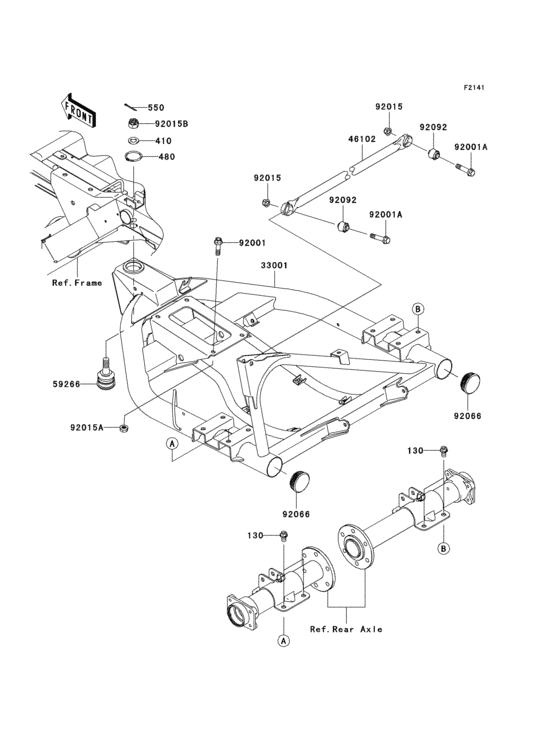

Swingarm Diagram Kawasaki KAF400 Mule 600
- Model code
- KAF400-B1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Power
- 12,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J1016 BOLT-FLANGED,10X16 |
130J1016 |
US $3.15 |
||
| replacements | |||||
|
130
|
130
130CB1016 BOLT-FLANGED |
130CB1016 |
from US $1.56 |
||
|
130
|
130
130BB1016 BOLT-FLANGED,10X16 |
130BB1016 |
from US $1.56 |
||
|
410
|
410
410B1400 WASHER PLAIN 14MM |
410B1400 |
from US $1.27 |
||
| replacement | |||||
|
410
|
410
410AA1400 WASHER-PLAIN-SMALL,14 |
410AA1400 |
from US $0.95 |
||
|
480
|
480
480J3800 CIRCLIP, 38MM |
480J3800 |
from US $1.56 |
||
|
550
|
550
550D3230 PIN,COTTER |
550D3230 |
US $1.67 |
||
| replacement | |||||
|
550
|
550
550AA3230 PIN,COTTER |
550AA3230 |
from US $0.94 |
||
|
33001
|
33001
33001-0061 ARM-COMP-SWING |
33001-0061 |
US $606.01 |
||
| replacement | |||||
|
33001
|
33001
33001-0715 Arm-Comp-Swing |
33001-0715 |
US $698.77 |
||
|
46102
|
46102
46102-1297 ROD |
46102-1297 |
from US $93.45 |
||
|
59266
|
59266
59266-1087 JOINT-BALL |
59266-1087 |
from US $40.44 |
||
|
92001
|
92001
92001-1293 BOLT,HEX HEAD,10X38 |
92001-1293 |
from US $6.02 |
||
|
92001A
|
92001A
92001-1499 BOLT,10X44 |
92001-1499 |
from US $3.17 |
||
|
92015
|
92015
92015-1335 NUT,LOCK,FLANGED,10MM |
92015-1335 |
from US $3.15 |
||
| replacement | |||||
|
92015
|
92015
92210-0276 NUT,LOCK,FLANGED,10MM |
92210-0276 |
from US $1.43 |
||
|
92015A
|
92015A
92015-1717 NUT,LOCK,FLANGED,10MM |
92015-1717 |
from US $6.34 |
||
|
92015B
|
92015B
92015-1841 NUT,CASTLE,14MM |
92015-1841 |
from US $5.13 |
||
|
92066
|
92066
92066-0044 PLUG |
92066-0044 |
US $6.53 |
||
|
92092
|
92092
92092-1072 BUSHING-RUBBER |
92092-1072 |
from US $7.16 |
||
