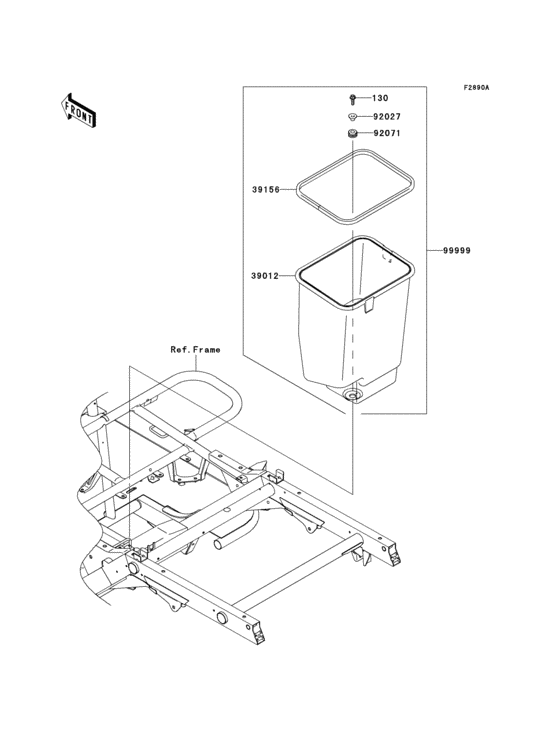

Optional parts(frame) Diagram Kawasaki KAF400 Mule 600
- Model code
- KAF400-B1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- Europe
- Colour
- Aztec Red (467)
- Power
- 12,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 600
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0620
BOLT-FLANGED
|
130J0620 |
— | ||
| replacements | |||||
|
130
|
130
130BB0620 BOLT-FLANGED |
130BB0620 |
from US $0.78 |
||
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
39012
|
39012
39012-0006 CASE-STORAGE |
39012-0006 |
US $59.40 |
||
|
39156
|
39156
39156-0052 PAD,STORAGE CASE |
39156-0052 |
US $9.27 |
||
|
92027
|
92027
92027-1767 COLLAR |
92027-1767 |
from US $3.33 |
||
|
92071
|
92071
92071-1010 GROMMET |
92071-1010 |
from US $3.01 |
||
|
99999
|
99999
99999-0054 KIT.,STORAGE BOX |
99999-0054 |
US $93.65 |
||
