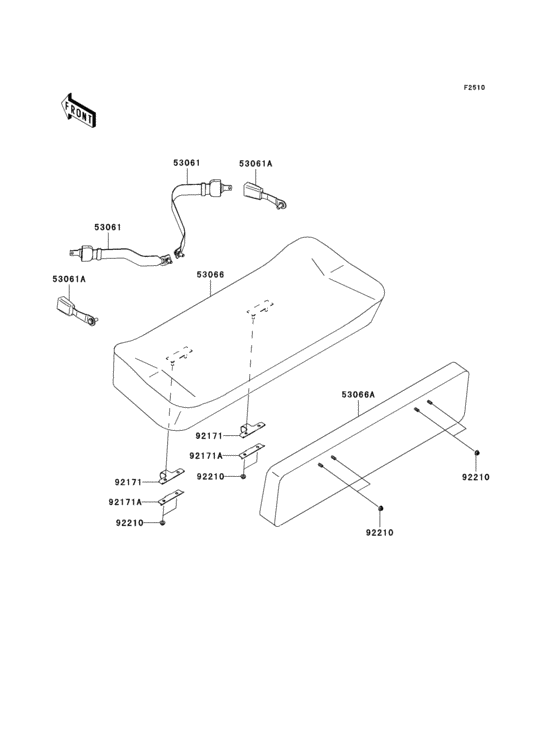

Seat Diagram Kawasaki KAF400 Mule 600
- Model code
- KAF400-B1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- Europe
- Colour
- Aztec Red (467)
- Power
- 12,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 600
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53061
|
53061
53061-1013 BELT-SEAT,CATCH PLATE |
53061-1013 |
from US $68.89 |
||
|
53061A
|
53061A
53061-1014 BELT-SEAT,BUCKLE |
53061-1014 |
from US $58.48 |
||
|
53066
|
53066
53066-0077-338 SEAT-ASSY,CUSHION,GRA |
53066-0077-338 |
US $581.40 |
||
|
53066A
|
53066A
53066-0078-338 SEAT-ASSY,BACK,GRAY |
53066-0078-338 |
US $451.48 |
||
|
92171
|
92171
92171-0441 CLAMP |
92171-0441 |
US $11.78 |
||
|
92171A
|
92171A
92171-0442 CLAMP |
92171-0442 |
US $11.78 |
||
|
92210
|
92210
92210-0005 NUT,FLANGED,LOCK,8MM |
92210-0005 |
from US $2.30 |
