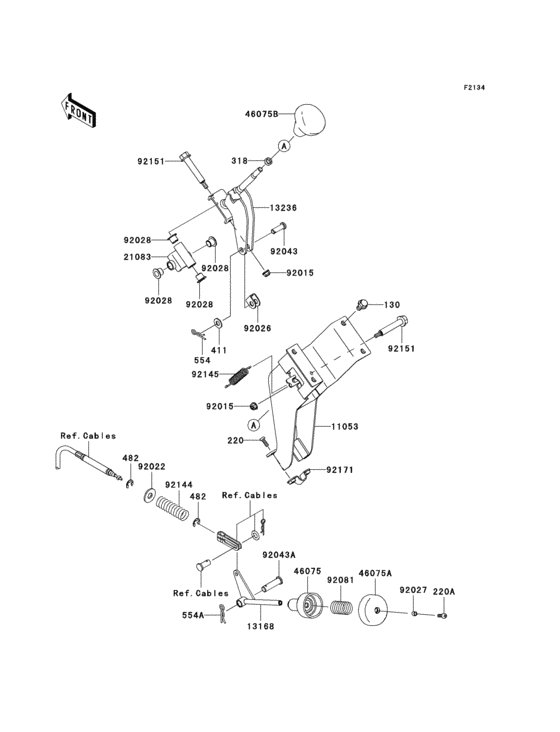

Shift lever(s) Diagram Kawasaki KAF400 Mule 600
- Model code
- KAF400-B1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- Europe
- Colour
- Aztec Red (467)
- Power
- 12,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0816
BOLT-FLANGED
|
130J0816 |
— | ||
| replacement | |||||
|
130
|
130
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
220
|
220
220D0514 SCREW-PAN-CROS |
220D0514 |
from US $0.79 |
||
| replacement | |||||
|
220
|
220
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
220A
|
220A
220F0514
SCREW-PAN-CROSS
|
220F0514 |
— | ||
| replacement | |||||
|
220A
|
220A
220AB0514 SCREW-PAN-CROSS |
220AB0514 |
from US $1.25 |
||
|
318
|
318
318J0800 NUT-HEX-SMALL |
318J0800 |
US $2.66 |
||
| replacement | |||||
|
318
|
318
318BB0800 NUT-HEX-SMALL |
318BB0800 |
from US $0.95 |
||
|
411
|
411
411B0800
WASHER PLAIN 8MM
|
411B0800 |
— | ||
| replacement | |||||
|
411
|
411
411AA0800 WASHER-PLAIN |
411AA0800 |
from US $0.72 |
||
|
482
|
482
482L8000
CIRCLIP-TYPE-E
|
482L8000 |
— | ||
| replacement | |||||
|
482
|
482
482EA8000 CIRCLIP-TYPE-E |
482EA8000 |
from US $1.05 |
||
|
554
|
554
554A0800 PIN-SNAP |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
554
|
554
554DA0800 PIN-SNAP |
554DA0800 |
from US $0.63 |
||
|
554A
|
554A
554A1000
PIN-SNAP,10MM
|
554A1000 |
— | ||
| replacement | |||||
|
554A
|
554A
554DA1000 PIN-SNAP,10MM |
554DA1000 |
from US $0.91 |
||
|
11053
|
11053
11053-1496 BRACKET,SHIFT LEVER |
11053-1496 |
US $48.92 |
||
| replacement | |||||
|
11053
|
11053
11056-2237 BRACKET,SHIFT LEVER |
11056-2237 |
from US $57.99 |
||
|
13168
|
13168
13168-0069 LEVER |
13168-0069 |
from US $20.68 |
||
|
13236
|
13236
13236-0073 LEVER-COMP,SHIFT |
13236-0073 |
from US $29.39 |
||
|
21083
|
21083
21083-0023 ARM |
21083-0023 |
from US $32.04 |
||
|
46075
|
46075
46075-0012 GRIP |
46075-0012 |
from US $8.71 |
||
|
46075A
|
46075A
46075-0014 GRIP |
46075-0014 |
from US $4.20 |
||
|
46075B
|
46075B
46075-1185 GRIP,SHIFT |
46075-1185 |
US $26.33 |
||
| replacement | |||||
|
46075B
|
46075B
46075-0046 GRIP,SHIFT |
46075-0046 |
US $34 |
||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-044 WASHER-PL-10.5X26X2.3 |
92022-044 |
from US $3.20 |
||
|
92026
|
92026
92026-0074 SPACER |
92026-0074 |
from US $1.71 |
||
|
92027
|
92027
92027-1313 COLLAR,4.5X6.5X9.3 |
92027-1313 |
from US $5.13 |
||
|
92028
|
92028
92028-1507 BUSHING |
92028-1507 |
from US $3.02 |
||
|
92043
|
92043
92043-0053 PIN |
92043-0053 |
from US $2.79 |
||
|
92043A
|
92043A
92043-1069 PIN,FOOTRST STEP FITT |
92043-1069 |
from US $3.27 |
||
|
92081
|
92081
92081-1714 SPRING |
92081-1714 |
from US $2.49 |
||
|
92144
|
92144
92144-1510 SPRING |
92144-1510 |
from US $8.09 |
||
|
92145
|
92145
92145-0249 SPRING |
92145-0249 |
from US $3.73 |
||
|
92151
|
92151
92151-1747 BOLT,6MM |
92151-1747 |
from US $9.67 |
||
|
92171
|
92171
92171-0365 CLAMP |
92171-0365 |
from US $3.27 |
||
