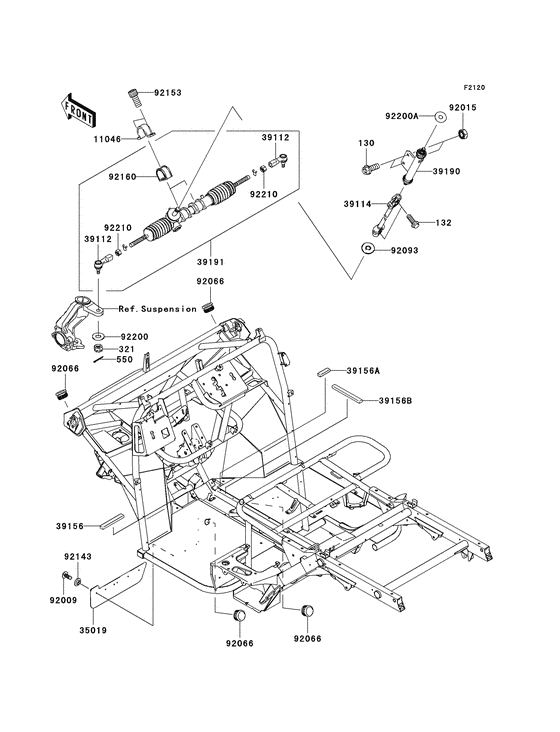

Frame Diagram Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD
- Model code
- KAF400-C1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- USA
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J1025 BOLT-FLANGED,10X25Bolt-flanged,10x25; |
130J1025 |
from US $1.90 |
||
| replacement | |||||
|
130
|
130
130BB1025 BOLT-FLANGED,10X25Bolt-flanged,10x25; |
130BB1025 |
from US $1.43 |
||
|
132
|
132
132J0825
BOLT-FLANGED-SMALL
Bolt-flanged-small,8x25; |
132J0825 |
— | ||
| replacement | |||||
|
132
|
132
132BB0825 BOLT-FLANGED-SMALLBolt-flanged-small,8x25; |
132BB0825 |
from US $1.61 |
||
|
321
|
321
321H1000 NUT-CASTLE |
321H1000 |
US $5.11 |
||
| replacement | |||||
|
321
|
321
321BA1000 NUT-CASTLE |
321BA1000 |
from US $1.24 |
||
|
550
|
550
550D2022 PIN-COTTER,2.0X22Pin-cotter,2.0x22; |
550D2022 |
US $1.67 |
||
| replacement | |||||
|
550
|
550
550AA2022 PIN-COTTER,2.0X22Pin-cotter,2.0x22; |
550AA2022 |
from US $0.94 |
||
|
11046
|
11046
11046-1858 BRACKET,STEERING GEARBracket,steering gear; |
11046-1858 |
US $9.05 |
||
| replacement | |||||
|
11046
|
11046
11056-2238 BRACKET,STEERING GEARBracket,steering gear; |
11056-2238 |
from US $10.73 |
||
|
35019
|
35019
35019-0037 FLAP,FRFlap,fr; |
35019-0037 |
US $41.72 |
||
|
39112
|
39112
39112-0008 TIE-ROD END, STEERING GRodend-tie,steering gear; |
39112-0008 |
from US $63.60 |
||
|
39114
|
39114
39114-0003 SHAFT-COMP-STRG |
39114-0003 |
from US $216.17 |
||
|
39156
|
39156
39156-0068 PAD |
39156-0068 |
US $4.86 |
||
|
39156A
|
39156A
39156-0069 PAD |
39156-0069 |
US $2.69 |
||
|
39156B
|
39156B
39156-0070 PAD |
39156-0070 |
US $6.77 |
||
|
39190
|
39190
39190-0001 SHAFT-ASSY-STEERING |
39190-0001 |
US $247.61 |
||
| replacement | |||||
|
39190
|
39190
39190-0004 SHAFT-ASSY-STEERING |
39190-0004 |
from US $163.30 |
||
|
39191
|
39191
39191-0001 Superceded |
39191-0001 |
US $915.71 |
||
| replacement | |||||
|
39191
|
39191
39191-0022 GEAR-ASSY-STEERING |
39191-0022 |
from US $690.51 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPINGScrew,tapping,6x16; |
92009-1166 |
from US $2.88 |
||
|
92015
|
92015
92015-1189 NUT,LOCK,10MM,BLACKNut,lock,10mm,black; |
92015-1189 |
from US $3.96 |
||
|
92066
|
92066
92066-0036 PLUG |
92066-0036 |
US $2.69 |
||
|
92093
|
92093
92093-1313 SEAL |
92093-1313 |
from US $4.51 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92153
|
92153
92153-1269 BOLT,SOCKET,10X23Bolt,socket,10x23; |
92153-1269 |
from US $1.24 |
||
|
92160
|
92160
92160-1084 DAMPER,STEERING GEARDamper,steering gear; |
92160-1084 |
from US $18.82 |
||
|
92200
|
92200
92200-0140 WASHER,10.3X23X1.6Washer,10.3x23x1.6; |
92200-0140 |
from US $2.65 |
||
|
92200A
|
92200A
92200-1130 WASHER,15X45X0.6Washer,15x45x0.6; |
92200-1130 |
from US $2.65 |
||
|
92210
|
92210
92210-0217 NUT,14MMNut,14mm; |
92210-0217 |
from US $2.79 |
||
