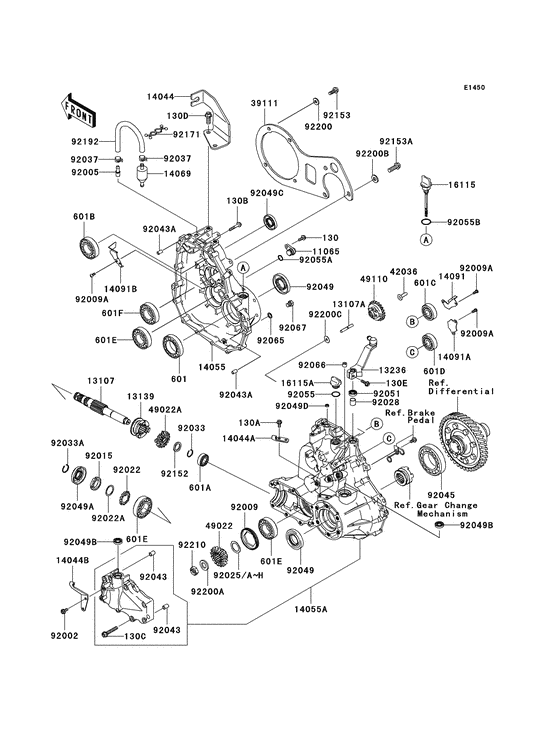

Gear box Diagram Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD
- Model code
- KAF400-C1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- USA
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-0062 CAP,GEAR CASE,RHCap,gear case,rh; |
11065-0062 |
from US $11.20 |
||
|
13107
|
13107
13107-0043 SHAFT,PARTICULARShaft,particular; |
13107-0043 |
from US $154.43 |
||
|
13107A
|
13107A
13107-2235 SHAFT |
13107-2235 |
from US $5.28 |
||
|
13139
|
13139
13139-0005 SHIFTER,2WD/4WDShifter,2wd/4wd; |
13139-0005 |
from US $62.52 |
||
|
13236
|
13236
13236-0039 LEVER-COMP |
13236-0039 |
from US $39.66 |
||
|
14044
|
14044
14044-0005 HOLDER-CABLE,FR/RRHolder-cable,shift control; |
14044-0005 |
from US $28.45 |
||
|
14044A
|
14044A
14044-0006 HOLDER-CABLE,DIFF-LOCHolder-cable,diff-lock; |
14044-0006 |
from US $6.06 |
||
|
14044B
|
14044B
14044-0007 HOLDER-CABLE,2WD/4WDHolder-cable,2wd/4wd; |
14044-0007 |
from US $6.06 |
||
|
14055
|
14055
14055-0008 CASE-GEAR,RHCase-gear,rh; |
14055-0008 |
from US $192.84 |
||
|
14055A
|
14055A
14055-5001 CASE-GEAR, SETCase-gear,set; |
14055-5001 |
from US $365.47 |
||
|
14069
|
14069
14069-1051 BREATHER |
14069-1051 |
from US $7.44 |
||
|
14091
|
14091
14091-0350 COVER |
14091-0350 |
from US $3.43 |
||
|
14091A
|
14091A
14091-0366 COVER |
14091-0366 |
from US $1.87 |
||
|
14091B
|
14091B
14091-0394 COVER |
14091-0394 |
from US $5.28 |
||
|
16115
|
16115
16115-0015 CAP-OIL FILLER |
16115-0015 |
from US $8.24 |
||
|
16115A
|
16115A
16115-1053 CAP-OIL FILLER |
16115-1053 |
from US $6.49 |
||
|
39111
|
39111
39111-0016 ROD-TIE |
39111-0016 |
US $116.13 |
||
|
42036
|
42036
42036-2060 SLEEVE-GOVERNOR |
42036-2060 |
from US $2.79 |
||
|
49022
|
49022
49022-0021 GEAR-BEVEL,18TGear-bevel,18t; |
49022-0021 |
from US $87.87 |
||
|
49022A
|
49022A
49022-0022 GEAR-BEVEL,PINION,16TGear-bevel,pinion,16t; |
49022-0022 |
from US $100.47 |
||
|
49110
|
49110
49110-0004 GOVERNOR-ASSY |
49110-0004 |
from US $75.89 |
||
| replacement | |||||
|
49110
|
49110
49110-0011 GOVERNOR-ASSY |
49110-0011 |
from US $133.29 |
||
|
92002
|
92002
92002-1656 BOLT,6X14Bolt,6x14; |
92002-1656 |
from US $2.85 |
||
|
92005
|
92005
92005-1127 FITTING,BREATHERFitting,breather; |
92005-1127 |
from US $11.88 |
||
|
92009
|
92009
92009-1914 SCREW,64MMScrew,64mm; |
92009-1914 |
from US $16.49 |
||
|
92009A
|
92009A
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92015
|
92015
92015-1768 NUT,25MMNut,25mm; |
92015-1768 |
from US $14 |
||
|
92022
|
92022
92022-1990 WASHER,TOOTHEDWasher,toothed; |
92022-1990 |
from US $3.27 |
||
|
92022A
|
92022A
92022-225 WASHER-THRUSTWasher,25.3x32x0.5; |
92022-225 |
from US $3.17 |
||
|
92025
|
92025
92025-1688 SHIM,25.3X36X0.15Shim,25.3x36x0.15; |
92025-1688 |
from US $5.54 |
||
|
92025A
|
92025A
92025-1689 SHIM,25.3X36X0.50Shim,25.3x36x0.50; |
92025-1689 |
from US $5.54 |
||
|
92025B
|
92025B
92025-1690 SHIM,25.3X36X0.60Shim,25.3x36x0.60; |
92025-1690 |
from US $5.54 |
||
|
92025C
|
92025C
92025-1691 SHIM,25.3X36X0.70Shim,25.3x36x0.70; |
92025-1691 |
from US $5.54 |
||
|
92025D
|
92025D
92025-1692 SHIM,25.3X36X0.80Shim,25.3x36x0.80; |
92025-1692 |
from US $5.54 |
||
|
92025E
|
92025E
92025-1693 SHIM,25.3X36X0.90Shim,25.3x36x0.90; |
92025-1693 |
from US $5.54 |
||
|
92025F
|
92025F
92025-1694 SHIM,25.3X36X1.0Shim,25.3x36x1.00; |
92025-1694 |
from US $5.54 |
||
|
92025G
|
92025G
92025-1695 SHIM,25.3X36X1.1Shim,25.3x36x1.10; |
92025-1695 |
from US $5.54 |
||
|
92025H
|
92025H
92025-1696 SHIM,25.3X36X1.2Shim,25.3x36x1.20; |
92025-1696 |
from US $5.54 |
||
|
92028
|
92028
92028-1347 BUSHING |
92028-1347 |
from US $5.54 |
||
|
92033
|
92033
92033-0035 RING-SNAP |
92033-0035 |
from US $2.33 |
||
|
92033A
|
92033A
92033-0036 RING-SNAP |
92033-0036 |
from US $2.33 |
||
|
130
|
130
130G0616 BOLT-FLANGED,6X16Bolt-flanged,6x16; |
130G0616 |
from US $0.61 |
||
| replacement | |||||
|
130
|
130
130BA0616 BOLT-FLANGED,6X16Bolt-flanged,6x16; |
130BA0616 |
from US $0.79 |
||
|
130A
|
130A
130H0614 BOLT-FLANGED,6X14Bolt-flanged,6x14; |
130H0614 |
from US $1.43 |
||
| replacement | |||||
|
130A
|
130A
130BA0614 BOLT-FLANGED,6X14Bolt-flanged,6x14; |
130BA0614 |
from US $0.79 |
||
|
130B
|
130B
130H0635
BOLT,FLANGED,6X35
Bolt-flanged,6x35; |
130H0635 |
— | ||
| replacement | |||||
|
130B
|
130B
130BA0635 BOLT,FLANGED,6X35Bolt-flanged,6x35; |
130BA0635 |
from US $1.11 |
||
|
130C
|
130C
130H0845 BOLT-FLANGEDBolt-flanged,8x45; |
130H0845 |
from US $1.90 |
||
| replacement | |||||
|
130C
|
130C
130BA0845 BOLT-FLANGEDBolt-flanged,8x45; |
130BA0845 |
from US $1.43 |
||
|
130D
|
130D
130H1025 BOLT-FLANGED,10X25Bolt-flanged,10x25; |
130H1025 |
US $2.32 |
||
| replacement | |||||
|
130D
|
130D
130BA1025 BOLT-FLANGED,10X25Bolt-flanged,10x25; |
130BA1025 |
from US $1.43 |
||
|
130E
|
130E
130T0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130T0620 |
US $1.19 |
||
| replacement | |||||
|
130E
|
130E
130CA0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130CA0620 |
from US $1.11 |
||
|
601
|
601
601B6008 BEARING-BALL |
601B6008 |
from US $19.28 |
||
|
601A
|
601A
601B6202 BEARING BALL #6202Bearing-ball,#6202c3; |
601B6202 |
from US $10.03 |
||
|
601B
|
601B
601B6206 BALL BEARING,#6206Bearing-ball,#6206c3; |
601B6206 |
from US $22.61 |
||
|
601C
|
601C
601B6303 BEARING BALL #6303Bearing-ball,#6303c3; |
601B6303 |
from US $9.67 |
||
|
601D
|
601D
601B6303U BEARING-BALL |
601B6303U |
from US $12.60 |
||
|
601E
|
601E
601B6305 BEARING BALL #6305Bearing-ball,#6305c3; |
601B6305 |
from US $23.19 |
||
|
601F
|
601F
601B6305U BEARING-BALL #6305UBearing-ball,#6305u; |
601B6305U |
from US $17.73 |
||
|
92037
|
92037
92037-1505 CLAMP,TUBEClamp,tube; |
92037-1505 |
from US $3.17 |
||
|
92043
|
92043
92043-1037 PIN,DOWEL,10X8.2X14Pin,dowel,10x14; |
92043-1037 |
from US $0.97 |
||
|
92043A
|
92043A
92043-1263 PIN,6.2X8X14Pin,6.2x8x14; |
92043-1263 |
from US $0.75 |
||
|
92045
|
92045
92045-1213 BEARING-BALLBearing-ball,6210cm; |
92045-1213 |
from US $44.78 |
||
|
92049
|
92049
92049-0049 SEAL-OIL,HTC 30 60 8Seal-oil,htc 30 60 8; |
92049-0049 |
from US $7.32 |
||
|
92049A
|
92049A
92049-0053 SEAL-OIL,YC9Y 22X50X9Seal-oil,yc9y 22x50x9x13.4; |
92049-0053 |
from US $11.04 |
||
|
92049B
|
92049B
92049-1520 SEAL-OIL,TC14245Seal-oil,tc14245; |
92049-1520 |
from US $8.87 |
||
|
92049C
|
92049C
92049-1576 SEAL-OILSeal-oil,htc 28x45x7; |
92049-1576 |
from US $8.55 |
||
|
92049D
|
92049D
92049-2097 SEAL-OILSeal-oil,vc-6x10x2.5; |
92049-2097 |
from US $1.56 |
||
|
92051
|
92051
92051-005 OIL SEAL,TB13225.5Seal-oil,tb13225.5; |
92051-005 |
from US $6.57 |
||
|
92055
|
92055
92055-012 0 RING,18MM |
92055-012 |
from US $1.43 |
||
|
92055A
|
92055A
92055-1141 RING-O,ID=13.8Ring-o,id=13.8; |
92055-1141 |
from US $2.53 |
||
|
92055B
|
92055B
92055-2185 RING-O,20MMRing-o,20x3; |
92055-2185 |
from US $1.25 |
||
|
92065
|
92065
92065-058 GASKETGasket,10.5x16x1; |
92065-058 |
from US $3.37 |
||
|
92066
|
92066
92066-1227 PLUG,PT1/8X7Plug,pt1/8x7; |
92066-1227 |
from US $3.96 |
||
| replacement | |||||
|
92066
|
92066
92066-0863 PLUG,PT1/8X7Plug,pt1/8x7; |
92066-0863 |
from US $3.64 |
||
|
92067
|
92067
92067-001 PLUG, OIL DRAINPlug,drain,10x12; |
92067-001 |
from US $3.73 |
||
|
92152
|
92152
92152-0132 COLLAR,20.2X28.0Collar,20.2x28.0; |
92152-0132 |
from US $3.73 |
||
|
92153
|
92153
92153-0898 BOLT,FLANGED,8X21Bolt,flanged,8x21; |
92153-0898 |
from US $1.71 |
||
|
92153A
|
92153A
92153-0908 BOLT,10X30Bolt,10x30; |
92153-0908 |
from US $1.40 |
||
|
92171
|
92171
92171-0476 CLAMP |
92171-0476 |
from US $1.90 |
||
|
92192
|
92192
92192-0216 TUBE |
92192-0216 |
from US $5.90 |
||
|
92200
|
92200
92200-0205 WASHER,8.2X20.0X2.5Washer,8.2x20.0x2.5; |
92200-0205 |
from US $1.40 |
||
|
92200A
|
92200A
92200-0210 WASHER,17X30X3.5Washer,17x30x3.5; |
92200-0210 |
from US $1.71 |
||
|
92200B
|
92200B
92200-0211 WASHER,10.2X23.0X2.5Washer,10.2x23.0x2.5; |
92200-0211 |
from US $1.43 |
||
|
92200C
|
92200C
92200-2036 WASHER,6.2X20X0.5Washer,6.2x20x0.5; |
92200-2036 |
from US $1.09 |
||
|
92210
|
92210
92210-0211 NUT,16MMNut,16mm; |
92210-0211 |
from US $11.98 |
||
