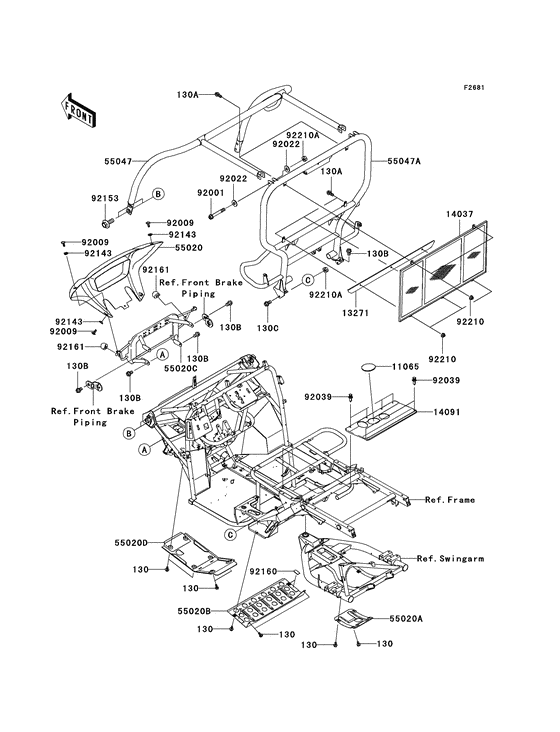

Guards/cab frame Diagram Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD
- Model code
- KAF400-C1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- USA
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0612
BOLT-FLANGED,6X12
Bolt-flanged,6x12; |
130J0612 |
— | ||
| replacement | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12Bolt-flanged,6x12; |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130J0820
BOLT-FLANGED
Bolt-flanged,8x20; |
130J0820 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0820 BOLT-FLANGEDBolt-flanged,8x20; |
130BB0820 |
from US $1.24 |
||
|
130B
|
130B
130J1016 BOLT-FLANGED,10X16Bolt-flanged,10x16; |
130J1016 |
US $3.15 |
||
| replacements | |||||
|
130B
|
130B
130CB1016 BOLT-FLANGEDBolt-flanged,10x16; |
130CB1016 |
from US $1.56 |
||
|
130B
|
130B
130BB1016 BOLT-FLANGED,10X16Bolt-flanged,10x16; |
130BB1016 |
from US $1.56 |
||
|
130C
|
130C
130J1020
BOLT-FLANGED
Bolt-flanged,10x20; |
130J1020 |
— | ||
| replacement | |||||
|
130C
|
130C
130BB1020 BOLT-FLANGEDBolt-flanged,10x20; |
130BB1020 |
from US $1.40 |
||
|
11065
|
11065
11065-1053-6Z CAP,F.BLACKCap,f.black; |
11065-1053-6Z |
US $9.83 |
||
|
13271
|
13271
13271-0560-10 PLATE,SCREEN,BLACKPlate,screen,black; |
13271-0560-10 |
US $59.65 |
||
|
14037
|
14037
14037-0035-10 SCREEN,BLACKScreen,black; |
14037-0035-10 |
US $165.56 |
||
|
14091
|
14091
14091-0355 COVER |
14091-0355 |
US $5.95 |
||
|
55020
|
55020
55020-0090-283 GUARD,FRONT BUMPER,F.Guard,front bumper,black; |
55020-0090-283 |
US $91.10 |
||
| replacement | |||||
|
55020
|
55020
55020-0090-6Z GUARD,FRONT BUMPER,F.Guard,front bumper,black; |
55020-0090-6Z |
US $112.64 |
||
|
55020A
|
55020A
55020-0141 GUARD,DIFFGuard,diff; |
55020-0141 |
US $46.21 |
||
|
55020B
|
55020B
55020-0143 GUARD |
55020-0143 |
US $66.56 |
||
| replacement | |||||
|
55020B
|
55020B
55020-0883 GUARD |
55020-0883 |
from US $81.23 |
||
|
55020C
|
55020C
55020-0163 GUARDGuard,front; |
55020-0163 |
US $445.37 |
||
| replacement | |||||
|
55020C
|
55020C
55020-0777 GUARDGuard,front; |
55020-0777 |
from US $545.12 |
||
|
55020D
|
55020D
55020-0165 GUARD,FRONT DIFFGuard,front diff; |
55020-0165 |
US $64.45 |
||
|
55047
|
55047
55047-0006-10 BAR-COMP,FR,BLACKBar-comp,fr,black; |
55047-0006-10 |
US $326.72 |
||
|
55047A
|
55047A
55047-0008-10 BAR-COMP,RR,BLACKBar-comp,rr,black; |
55047-0008-10 |
US $630.23 |
||
|
92001
|
92001
92001-1618 BOLT,FLANGED,10X70Bolt,flanged,10x70; |
92001-1618 |
from US $6.49 |
||
|
92009
|
92009
92009-1621
SCREW
Screw,6x16; |
92009-1621 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1694 SCREWScrew,6x16; |
92009-1694 |
from US $5.13 |
||
|
92022
|
92022
92022-1396 WASHER,10.5X26X2.3,BLWasher,10.5x26x2.3,black; |
92022-1396 |
from US $1.90 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92153
|
92153
92153-1282 BOLT,FLANGED,14X36Bolt,flanged,14x36; |
92153-1282 |
from US $4.20 |
||
|
92160
|
92160
92160-1102 DAMPER |
92160-1102 |
US $2.66 |
||
| replacement | |||||
|
92160
|
92160
92075-1830 DAMPER |
92075-1830 |
from US $3.80 |
||
|
92161
|
92161
92161-0157 DAMPER |
92161-0157 |
US $6.07 |
||
|
92210
|
92210
92210-0005 NUT,FLANGED,LOCK,8MMNut,flanged,lock,8mm; |
92210-0005 |
from US $2.30 |
||
|
92210A
|
92210A
92210-1204 NUT,LOCK,10MMNut,lock,10mm; |
92210-1204 |
from US $5.59 |
||
