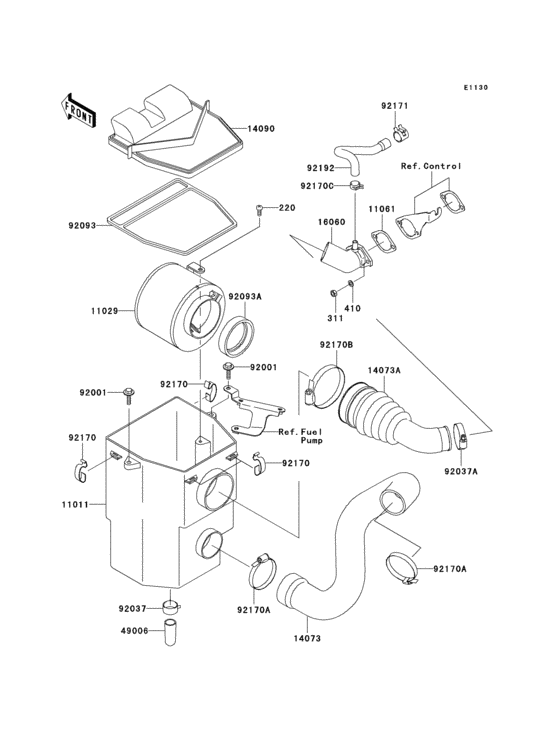

Air cleaner Diagram Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD
- Model code
- KAF400-C1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0614
SCREW-PAN-CROS,6X14
|
220B0614 |
— | ||
| replacement | |||||
|
220
|
220
220AA0614 SCREW-PAN-CROS,6X14 |
220AA0614 |
from US $0.95 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
11011
|
11011
11011-1367 CASE-AIR FILTER |
11011-1367 |
from US $58.48 |
||
|
11029
|
11029
11029-1004 ELEMENT-ASSY-AIR FILTER |
11029-1004 |
from US $40.80 |
||
|
11061
|
11061
11061-7026 GASKET,CHOKE |
11061-7026 |
US $1.51 |
||
|
14073
|
14073
14073-0072 DUCT,FRAME-AIR FILTER |
14073-0072 |
US $46.92 |
||
|
14073A
|
14073A
14073-0074 DUCT,AIR FILTER-IN.PI |
14073-0074 |
US $33.37 |
||
|
14090
|
14090
14090-1106 COVER,AIR FILTER |
14090-1106 |
from US $18.98 |
||
|
16060
|
16060
16060-2210 PIPE-INTAKE |
16060-2210 |
US $50.17 |
||
|
49006
|
49006
49006-1351 BOOT |
49006-1351 |
US $9.27 |
||
|
92001
|
92001
92001-1140 BOLT,6X25,W/WASHER |
92001-1140 |
from US $3.36 |
||
|
92037
|
92037
92037-1460 CLAMP |
92037-1460 |
from US $6.68 |
||
| replacement | |||||
|
92037
|
92037
92171-1571 CLAMP |
92171-1571 |
from US $5.28 |
||
|
92037A
|
92037A
92037-506 CLAMP,HOSE |
92037-506 |
from US $6.22 |
||
|
92093
|
92093
92093-1241 SEAL,AIR FILTER |
92093-1241 |
from US $7.46 |
||
|
92093A
|
92093A
92093-1322 SEAL,DUST |
92093-1322 |
from US $5.90 |
||
|
92170
|
92170
92170-1211 CLAMP,AIR FILTER |
92170-1211 |
from US $4.51 |
||
|
92170A
|
92170A
92170-1674 CLAMP |
92170-1674 |
from US $9.03 |
||
| replacement | |||||
|
92170A
|
92170A
92037-1523 CLAMP |
92037-1523 |
from US $8.08 |
||
|
92170B
|
92170B
92170-1679 CLAMP |
92170-1679 |
from US $8.45 |
||
| replacement | |||||
|
92170B
|
92170B
92170-1307 CLAMP |
92170-1307 |
from US $11.98 |
||
|
92170C
|
92170C
92170-7003 CLAMP |
92170-7003 |
US $1.58 |
||
|
92171
|
92171
92171-7013 CLAMP |
92171-7013 |
from US $0.94 |
||
| replacement | |||||
|
92171
|
92171
92173-7003 CLAMP |
92173-7003 |
US $2.70 |
||
|
92192
|
92192
92192-2084 TUBE,BREATHER |
92192-2084 |
US $2.99 |
||
