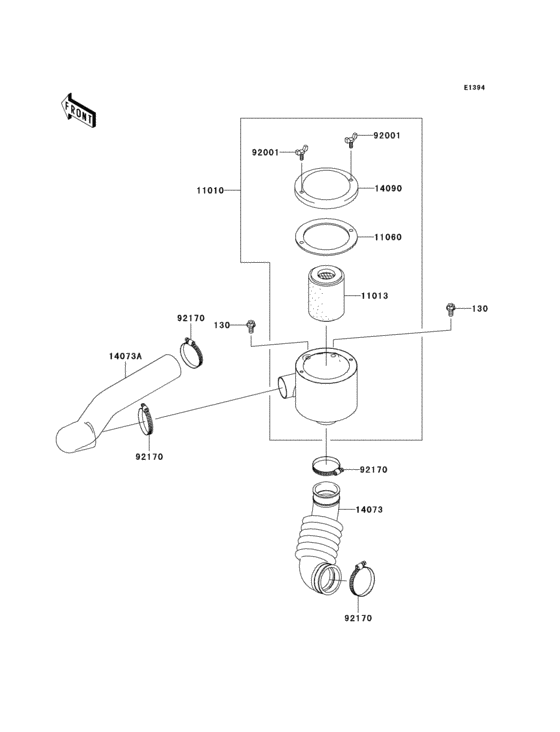

Air cleaner-belt converter Diagram Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD
- Model code
- KAF400-C1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0816
BOLT-FLANGED
|
130J0816 |
— | ||
| replacement | |||||
|
130
|
130
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
11010
|
11010
11010-0055 FILTER-ASSY-AIR |
11010-0055 |
from US $130.02 |
||
|
11013
|
11013
11013-1263 Element-air filter |
11013-1263 |
from US $19.20 |
||
|
11060
|
11060
11060-1975 GASKET,AIR FILTER CAS |
11060-1975 |
from US $7.93 |
||
|
14073
|
14073
14073-0061 DUCT,AIR FILTER-CASE |
14073-0061 |
US $28.08 |
||
|
14073A
|
14073A
14073-0080 DUCT,BAR-AIR FILTER |
14073-0080 |
US $42.38 |
||
|
14090
|
14090
14090-1766 COVER,AIR FILTER |
14090-1766 |
from US $9.49 |
||
|
92001
|
92001
92001-1703 BOLT,6X16 |
92001-1703 |
from US $2.33 |
||
|
92170
|
92170
92170-1674 CLAMP |
92170-1674 |
from US $9.03 |
||
| replacement | |||||
|
92170
|
92170
92037-1523 CLAMP |
92037-1523 |
from US $8.08 |
||
