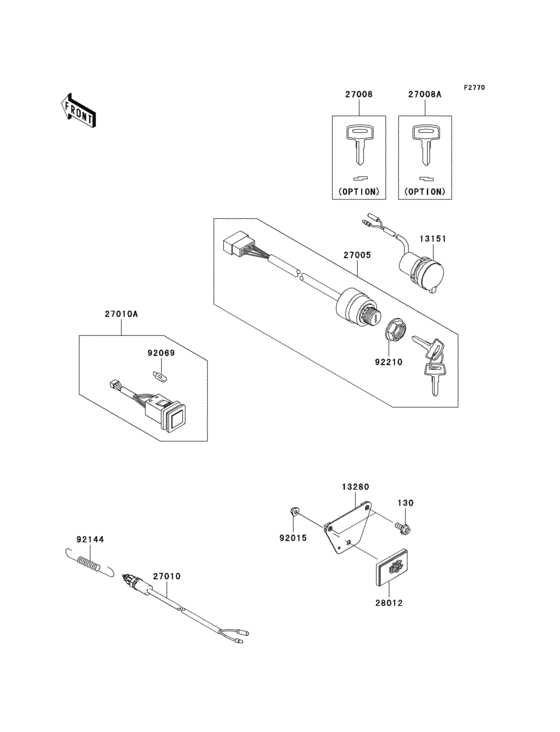

Ignition switch Diagram Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD
- Model code
- KAF400-C1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
|
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
13151
|
13151
13151-0003 SWITCH-COMP,D.C.TERMI |
13151-0003 |
from US $95.80 |
||
|
13280
|
13280
13280-0146 HOLDER,REFLECTOR |
13280-0146 |
US $9.28 |
||
|
27005
|
27005
27005-0011 SWITCH-ASSY-IGNITION |
27005-0011 |
from US $76.36 |
||
|
27008
|
27008
27008-1153 KEY-LOCK,BLANK |
27008-1153 |
US $15.71 |
||
| replacement | |||||
|
27008
|
27008
27008-1041 KEY-LOCK,BLANK |
27008-1041 |
from US $12.83 |
||
|
27008A
|
27008A
27008-1157 KEY-LOCK,BLANK |
27008-1157 |
US $15.71 |
||
| replacement | |||||
|
27008A
|
27008A
27008-1042 KEY-LOCK,BLANK |
27008-1042 |
from US $12.83 |
||
|
27010
|
27010
27010-1475 SWITCH,REAR BRAKE |
27010-1475 |
from US $22.90 |
||
|
27010A
|
27010A
27010-1498 Switch, head lamp |
27010-1498 |
US $53.66 |
||
| replacement | |||||
|
27010A
|
27010A
27010-0814 SWITCH,HEAD LAMP |
27010-0814 |
from US $37.94 |
||
|
28012
|
28012
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92069
|
92069
92069-1118 Bulb |
92069-1118 |
US $3.44 |
||
| replacement | |||||
|
92069
|
92069
92069-0083 BULB,12V 1.7W |
92069-0083 |
from US $2.79 |
||
|
92144
|
92144
92144-1143 SPRING,REAR BRAKE SWI |
92144-1143 |
from US $5.13 |
||
|
92210
|
92210
92210-1264 NUT,IGNITION SWITCH |
92210-1264 |
from US $3.11 |
||
