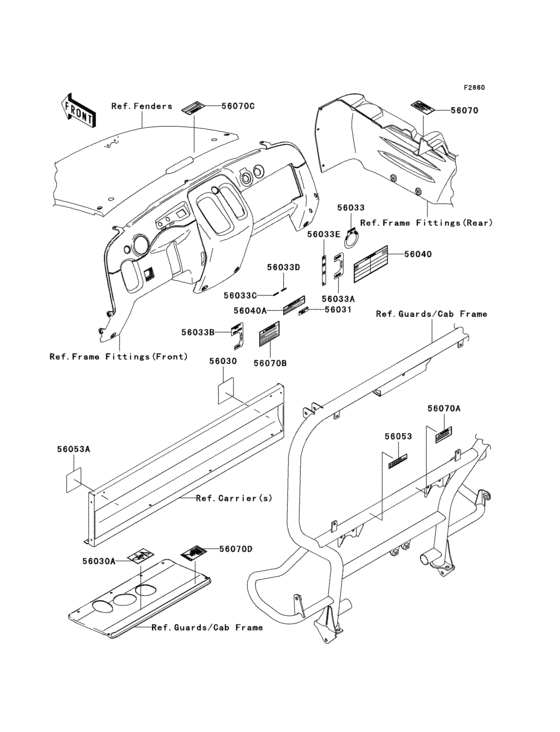

Labels Diagram Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD
- Model code
- KAF400-C1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56030
|
56030
56030-0081 LABEL,CARRIER HOOK OP |
56030-0081 |
US $5.85 |
||
|
56030A
|
56030A
56030-0096 LABEL,OIL GAUGE |
56030-0096 |
US $5.36 |
||
|
56031
|
56031
56031-1818 LABEL-MANUAL,BRAKE FL |
56031-1818 |
from US $4.20 |
||
|
56033
|
56033
56033-0051 LABEL-MANUAL,IGNITION |
56033-0051 |
US $5.85 |
||
|
56033A
|
56033A
56033-0052 LABEL-MANUAL,2/4WD |
56033-0052 |
US $5.85 |
||
|
56033B
|
56033B
56033-0053 LABEL-MANUAL,DIFF LOC |
56033-0053 |
US $5.85 |
||
|
56033C
|
56033C
56033-0054 LABEL-MANUAL,OIL TEMP |
56033-0054 |
US $2.48 |
||
|
56033D
|
56033D
56033-0055 LABEL-MANUAL,PARKING |
56033-0055 |
US $2.48 |
||
|
56033E
|
56033E
56033-0056 LABEL-MANUAL,SHIFT |
56033-0056 |
US $5.85 |
||
|
56040
|
56040
56040-1339 LABEL-WARNING,GENERAL |
56040-1339 |
US $9.95 |
||
| replacement | |||||
|
56040
|
56040
56071-0101 LABEL-WARNING,GENERAL |
56071-0101 |
US $6.21 |
||
|
56040A
|
56040A
56040-1342 LABEL-WARNING,SHIFT C |
56040-1342 |
from US $8.09 |
||
|
56053
|
56053
56053-0060 LABEL-SPECIFICATION,C |
56053-0060 |
US $3.58 |
||
|
56053A
|
56053A
56053-0121 LABEL-SPECIFICATION,T |
56053-0121 |
US $5.80 |
||
|
56070
|
56070
56070-0048 LABEL-WARNING,GASOLIN |
56070-0048 |
US $2.38 |
||
| replacement | |||||
|
56070
|
56070
56071-7501 LABEL-WARNING,GASOLIN |
56071-7501 |
US $4.18 |
||
|
56070A
|
56070A
56070-0049 LABEL-WARNING,BED RAI |
56070-0049 |
US $2.38 |
||
| replacement | |||||
|
56070A
|
56070A
56070-7515 LABEL-WARNING,BED RAI |
56070-7515 |
US $4.18 |
||
|
56070B
|
56070B
56070-0050 LABEL-WARNING,OFF-HIG |
56070-0050 |
US $4.18 |
||
|
56070C
|
56070C
56070-0053 LABEL-WARNING,BONNET |
56070-0053 |
US $4.18 |
||
|
56070D
|
56070D
56070-1125 LABEL-WARNING |
56070-1125 |
from US $6.06 |
||
