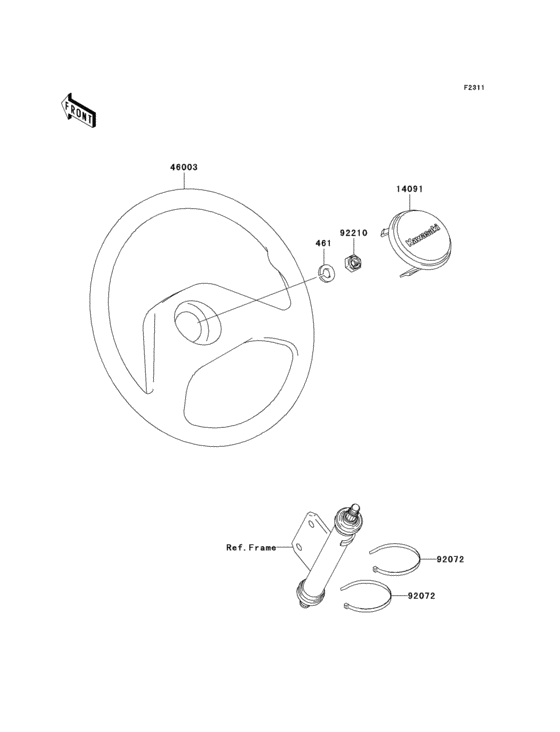

Steering wheel Diagram Kawasaki KAF400 Mule 600
- Model code
- KAF400B8F
- Engine Capacity
- 400
- Year
- 2008
- Sales region
- Europe
- Colour
- Aztec Red (467)
- Power
- 12,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 600
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
461
|
461
461DA1200 WASHER-SPRING,12MM |
461DA1200 |
from US $0.86 |
||
|
14091
|
14091
14091-1247 COVER,HORN SWITCH |
14091-1247 |
from US $40.44 |
||
|
46003
|
46003
46003-1308 HANDLE |
46003-1308 |
from US $132.65 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92210
|
92210
92210-1249 NUT,LOCK,12MM |
92210-1249 |
from US $3.96 |
