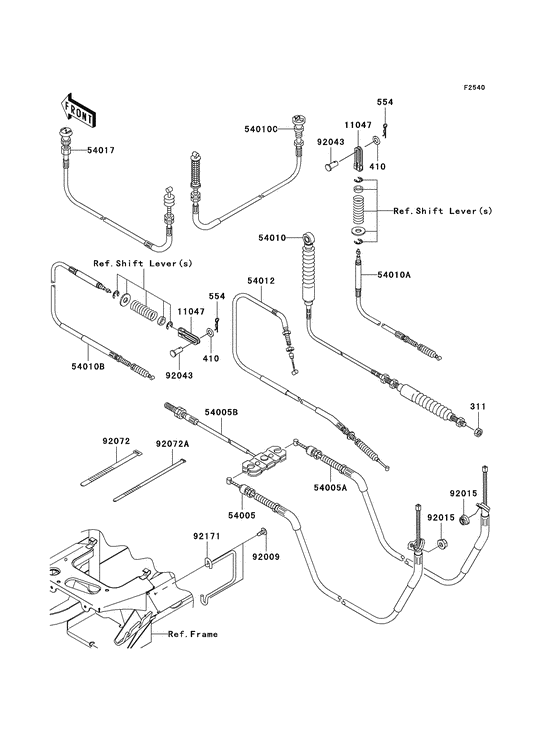

Cables Diagram Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD
- Model code
- KAF400C9F
- Engine Capacity
- 400
- Year
- 2009
- Sales region
- USA
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311AA0600 NUT-HEX,6MMNut-hex,6mm; |
311AA0600 |
from US $0.63 |
||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
11047
|
11047
11047-1043 BRACKET,DIFF LOCKBracket,diff lock; |
11047-1043 |
US $7.85 |
||
| replacement | |||||
|
11047
|
11047
11055-7505 BRACKET,DIFF LOCKBracket,diff lock; |
11055-7505 |
from US $4.98 |
||
|
54005
|
54005
54005-0007 CABLE-BRAKE,PARKNG,LHCable-brake,parking,lh; |
54005-0007 |
US $40.23 |
||
| replacement | |||||
|
54005
|
54005
54005-7505 CABLE-BRAKE,PARKNG,LHCable-brake,parking,lh; |
54005-7505 |
from US $35.45 |
||
|
54005A
|
54005A
54005-0008 CABLE-BRAKE,PARKNG,RHCable-brake,parking,rh; |
54005-0008 |
US $40.23 |
||
| replacement | |||||
|
54005A
|
54005A
54005-7506 CABLE-BRAKE,PARKNG,RHCable-brake,parking,rh; |
54005-7506 |
from US $35.45 |
||
|
54005B
|
54005B
54005-1198 CABLE-BRAKE,PARKING,FCable-brake,parking,fr; |
54005-1198 |
from US $10.54 |
||
|
54010
|
54010
54010-0014 CABLE,SHIFT CONTROLCable,shift control; |
54010-0014 |
from US $121.92 |
||
|
54010A
|
54010A
54010-0015 CABLE,2-4WDCable,2-4wd; |
54010-0015 |
from US $33.44 |
||
|
54010B
|
54010B
54010-0017 CABLE,DIFF LOCKCable,diff lock; |
54010-0017 |
from US $58 |
||
|
54010C
|
54010C
54010-0026 Cable,hoodCable,hood; |
54010-0026 |
US $31.01 |
||
| replacement | |||||
|
54010C
|
54010C
54010-0600 CABLE,HOODCable,hood; |
54010-0600 |
from US $30.89 |
||
|
54012
|
54012
54012-0127
CABLE-THROTTLE
|
54012-0127 |
— | ||
| replacement | |||||
|
54012
|
54012
54012-0702 Cable-Throttle |
54012-0702 |
US $53.02 |
||
|
54017
|
54017
54017-0012 CABLE-STARTER |
54017-0012 |
from US $39.50 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPINGScrew,tapping,6x16; |
92009-1166 |
from US $2.88 |
||
|
92015
|
92015
92015-1339 NUT,LOCK,FLANGED,6MMNut,lock,flanged,6mm; |
92015-1339 |
from US $1.84 |
||
|
92043
|
92043
92043-092 PIN-BRAKE CABLE FITPin,6x11; |
92043-092 |
from US $2.74 |
||
|
92072
|
92072
92072-031 BAND,MIDDLEBand,l=149; |
92072-031 |
from US $3.01 |
||
|
92072A
|
92072A
92072-1239 BAND,L=188Band,l=188; |
92072-1239 |
from US $1.90 |
||
|
92171
|
92171
92171-0300 CLAMP |
92171-0300 |
US $1.08 |
||
