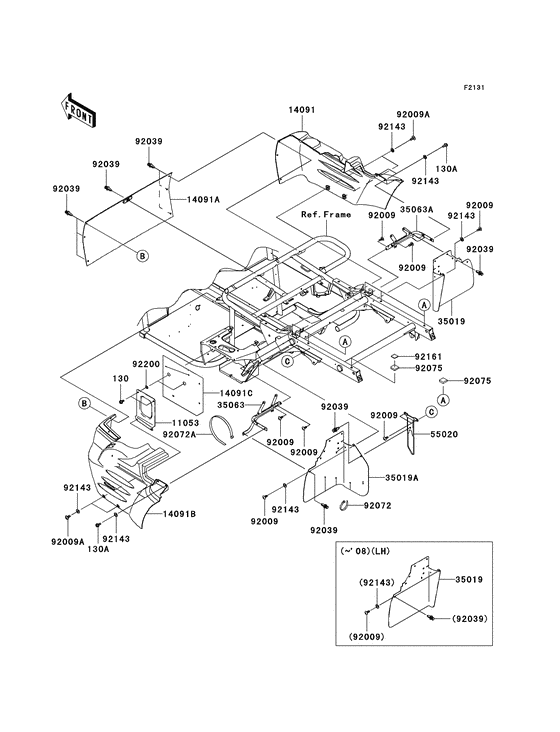

Frame fittings (Rear) Diagram Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD
- Model code
- KAF400C9F
- Engine Capacity
- 400
- Year
- 2009
- Sales region
- USA
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0612 BOLT-FLANGED,6X12Bolt-flanged,6x12; |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130BB0614 BOLT-FLANGED,6X14Bolt-flanged,6x14; |
130BB0614 |
from US $1.11 |
||
|
11053
|
11053
11053-0857 BRACKET |
11053-0857 |
US $56.36 |
||
|
14091
|
14091
14091-0224-283
COVER,REAR SIDE,RH,F.
Cover,rear side,rh,black; |
14091-0224-283 |
— | ||
| replacement | |||||
|
14091
|
14091
14091-0224-6Z COVER,REAR SIDE,RH,F.Cover,rear side,rh,black; |
14091-0224-6Z |
US $65.47 |
||
|
14091A
|
14091A
14091-0341-283 COVER,UNDER SEAT,CNT,Cover,under seat,cnt,black; |
14091-0341-283 |
US $35.33 |
||
| replacement | |||||
|
14091A
|
14091A
14091-0341-6Z COVER,UNDER SEAT,CNT,Cover,under seat,cnt,black; |
14091-0341-6Z |
US $43.66 |
||
|
14091B
|
14091B
14091-0395-283
Superceded
Cover,rear side,lh,black; |
14091-0395-283 |
— | ||
| replacement | |||||
|
14091B
|
14091B
14093-0500-6Z COVER,REAR SIDE,LH,F.Cover,rear side,lh,black; |
14093-0500-6Z |
from US $65.47 |
||
|
14091C
|
14091C
14091-0464 COVER |
14091-0464 |
US $27.83 |
||
|
35019
|
35019
35019-0029 FLAP,RR,FRFlap,rr,fr; |
35019-0029 |
US $34.69 |
||
| replacement | |||||
|
35019
|
35019
35019-0615 FLAP,RR,FRFlap,rr,fr; |
35019-0615 |
from US $41.37 |
||
|
35019A
|
35019A
35019-0071 FLAP,RR,FRFlap,rr,fr; |
35019-0071 |
US $51.05 |
||
|
35063
|
35063
35063-0186 STAY,LHStay,lh; |
35063-0186 |
US $72.14 |
||
|
35063A
|
35063A
35063-0187 STAY,RHStay,rh; |
35063-0187 |
US $92.87 |
||
|
55020
|
55020
55020-0404 GUARD,COOLING FANGuard,cooling fan; |
55020-0404 |
US $59.89 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPINGScrew,tapping,6x16; |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1621
SCREW
Screw,6x16; |
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREWScrew,6x16; |
92009-1694 |
from US $5.13 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92072
|
92072
92072-1195 BAND,L=185Band,l=202; |
92072-1195 |
from US $2.07 |
||
|
92072A
|
92072A
92072-3872 BAND,L=368.3Band,l=368.3; |
92072-3872 |
from US $1.90 |
||
|
92075
|
92075
92075-1882 DAMPER,SEAT |
92075-1882 |
from US $5.39 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92161
|
92161
92161-0256 DAMPER |
92161-0256 |
US $0.49 |
||
| replacement | |||||
|
92161
|
92161
92161-7520 DAMPER |
92161-7520 |
US $1.24 |
||
|
92200
|
92200
92200-0234 WASHER,7.04X12.5X0.6Washer,7.04x12.5x0.6; |
92200-0234 |
US $3.03 |
||
