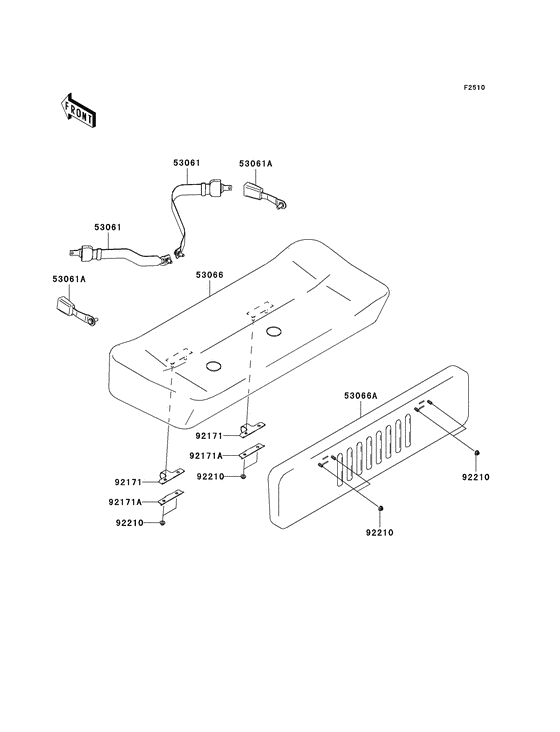

Seat Diagram Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD
- Model code
- KAF400C9F
- Engine Capacity
- 400
- Year
- 2009
- Sales region
- USA
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53061
|
53061
53061-1013 BELT-SEAT,CATCH PLATEBelt-seat,catch plate; |
53061-1013 |
from US $68.89 |
||
|
53061A
|
53061A
53061-1014 BELT-SEAT,BUCKLEBelt-seat,buckle; |
53061-1014 |
from US $58.48 |
||
|
53066
|
53066
53066-0115-MB SEAT-ASSY,CUSHION,S.MSeat-assy,cushion,s.m.brown; |
53066-0115-MB |
US $439.96 |
||
|
53066A
|
53066A
53066-0116-MB Seat-assy,back,s.m.brSeat-assy,back,s.m.brown; |
53066-0116-MB |
US $413.51 |
||
| replacement | |||||
|
53066A
|
53066A
53066-7510-MB SEAT-ASSY,BACK,S.M.BRSeat-assy,back,s.m.brown; |
53066-7510-MB |
US $451.48 |
||
|
92171
|
92171
92171-0441 CLAMP |
92171-0441 |
US $11.78 |
||
|
92171A
|
92171A
92171-0442 CLAMP |
92171-0442 |
US $11.78 |
||
|
92210
|
92210
92210-0005 NUT,FLANGED,LOCK,8MMNut,flanged,lock,8mm; |
92210-0005 |
from US $2.30 |
||
