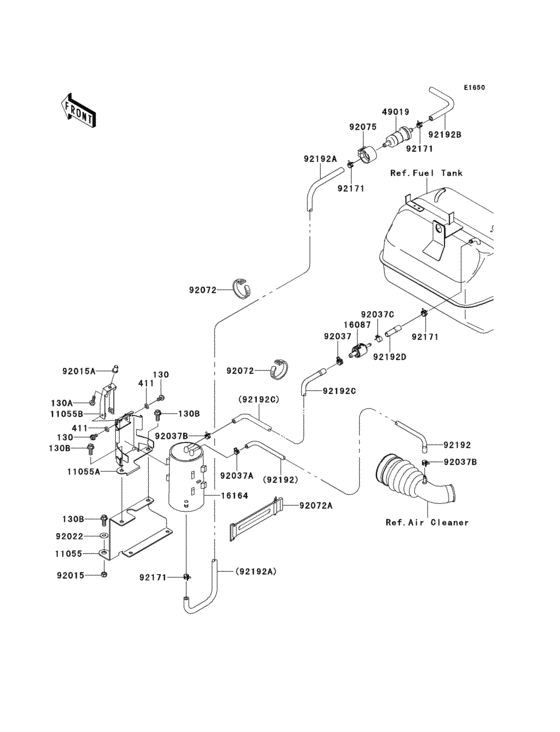

Fuel evaporative system(ebf) Diagram Kawasaki KAF400 Mule 610 4X4 XC Realtree APG HD
- Model code
- KAF400EBF
- Engine Capacity
- 400
- Year
- 2011
- Colour
- Camouflage Realtree Apg (16N)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 XC Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130BB0618 BOLT-FLANGED,6X18 |
130BB0618 |
from US $1.11 |
||
|
130B
|
130B
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $1.24 |
||
|
411
|
411
411AB0600 WASHER-PLAIN,(6.5x13x1) |
411AB0600 |
from US $0.63 |
||
|
11055
|
11055
11055-0262 BRACKET,LWR |
11055-0262 |
US $27.20 |
||
|
11055A
|
11055A
11055-0263 BRACKET,UPP |
11055-0263 |
US $25.33 |
||
|
11055B
|
11055B
11055-0401 BRACKET,FIX UPP |
11055-0401 |
US $14.20 |
||
|
16087
|
16087
16087-0002 VALVE-CHECK |
16087-0002 |
from US $31.10 |
||
|
16164
|
16164
16164-0007 CANISTER |
16164-0007 |
US $217.12 |
||
| replacements | |||||
|
16164
|
16164
16164-0013 CANISTER |
16164-0013 |
from US $217.12 |
||
|
16164
|
16164
16164-0018 Canister |
16164-0018 |
US $249.58 |
||
|
49019
|
49019
49019-1055
FILTER-FUEL
|
49019-1055 |
— | ||
| replacement | |||||
|
49019
|
49019
49019-0032 Filter-fuel |
49019-0032 |
from US $20.17 |
||
|
92015
|
92015
92015-1124 NUT,LOCK,8MM |
92015-1124 |
from US $3.17 |
||
|
92015A
|
92015A
92015-1759 NUT,POP,6MM |
92015-1759 |
from US $3.01 |
||
|
92022
|
92022
92022-1317 WASHER,8.5X20X1.6,BLA |
92022-1317 |
from US $2.69 |
||
|
92037
|
92037
92037-1181 CLAMP |
92037-1181 |
from US $3.01 |
||
|
92037A
|
92037A
92037-1461 TUBE CLAMP |
92037-1461 |
from US $3.17 |
||
|
92037B
|
92037B
92037-1505 CLAMP,TUBE |
92037-1505 |
from US $3.17 |
||
|
92037C
|
92037C
92037-2113 CLAMP |
92037-2113 |
from US $0.63 |
||
|
92072
|
92072
92072-056 BAND,WIRING HARNESS |
92072-056 |
from US $3.17 |
||
|
92072A
|
92072A
92072-1306 BAND,BATTERY |
92072-1306 |
from US $8.55 |
||
|
92075
|
92075
92075-1853 DAMPER |
92075-1853 |
from US $8.08 |
||
|
92171
|
92171
92171-0515 CLAMP |
92171-0515 |
from US $3.17 |
||
|
92192
|
92192
92192-0591 TUBE,CANISTER-DUCT |
92192-0591 |
US $11.88 |
||
|
92192C
|
92192C
92192-0768 TUBE,CHECK VALVE-CANI |
92192-0768 |
US $11.03 |
||
|
92192D
|
92192D
92192-0769 TUBE,TANK-CHECK VALVE |
92192-0769 |
US $4.62 |
||
