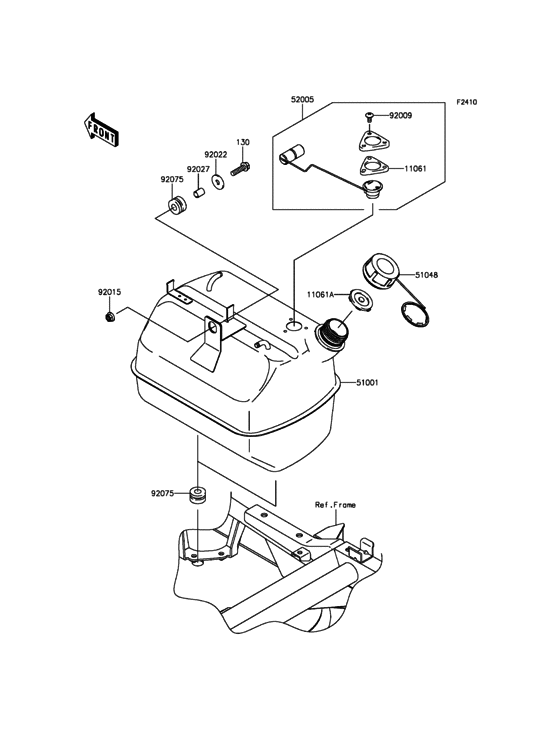

Fuel Tank Diagram Kawasaki KAF400 Mule 610 4X4 XC Camo
- Model code
- KAF400EGF
- Engine Capacity
- 400
- Year
- 2016
- Sales region
- Canada
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 XC Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0830 BOLT-FLANGED |
130AA0830 |
from US $1.14 |
||
|
11061
|
11061
11061-0120 GASKET,FUEL GAUGE |
11061-0120 |
from US $9.17 |
||
|
11061A
|
11061A
11061-7508 GASKET,FUEL TANK CAP |
11061-7508 |
from US $2.79 |
||
|
51001
|
51001
51048-0026 CAP-ASSY-TANK,FUEL |
51048-0026 |
US $13.01 |
||
|
52005
|
52005
52005-0730 GAUGE,FUEL |
52005-0730 |
from US $25.04 |
||
|
92009
|
92009
92009-1541 SCREW |
92009-1541 |
from US $5.75 |
||
|
92015
|
92015
92015-1397 NUT,FLANGED,8MM |
92015-1397 |
from US $3.37 |
||
|
92022
|
92022
92022-1632 WASHER,9X28X2.3 |
92022-1632 |
from US $2.65 |
||
|
92027
|
92027
92027-1081 COLLAR |
92027-1081 |
from US $5.60 |
||
|
92075
|
92075
92075-1736 DAMPER |
92075-1736 |
from US $3.96 |
