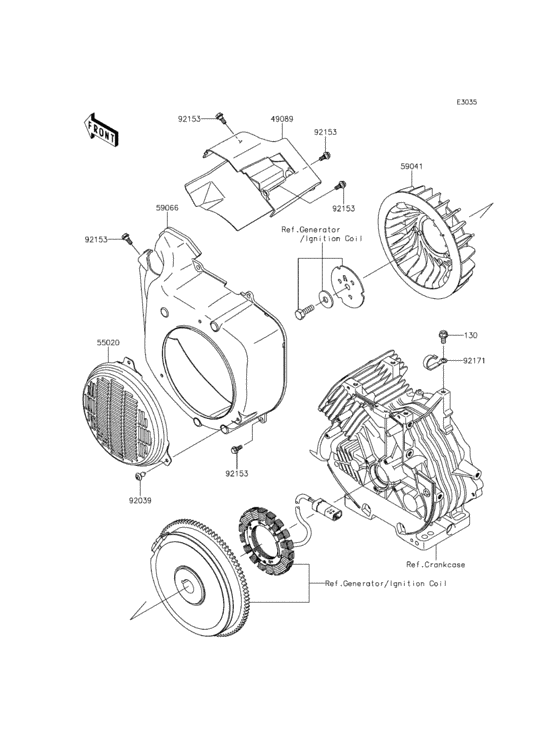

Cooling Diagram Kawasaki KAF400 Mule 610 4X4 XC SE
- Model code
- KAF400FEF
- Engine Capacity
- 400
- Year
- 2014
- Sales region
- Canada
- Colour
- Colored Plastic Super Black (839)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 XC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0816 BOLT-FLANGED |
130AA0816 |
from US $1.24 |
||
|
49089
|
49089
49089-7089 SHROUD-ENGINE |
49089-7089 |
US $6.46 |
||
|
55020
|
55020
55020-7008 GUARD |
55020-7008 |
US $6.95 |
||
| replacement | |||||
|
55020
|
55020
55020-2267 Guard |
55020-2267 |
US $9.72 |
||
|
59041
|
59041
59041-0007 FAN |
59041-0007 |
US $13.73 |
||
| replacements | |||||
|
59041
|
59041
59041-0014 FAN |
59041-0014 |
US $13.73 |
||
|
59041
|
59041
59041-0020 Fan |
59041-0020 |
from US $15.50 |
||
|
59066
|
59066
59066-7059 HOUSING-FAN |
59066-7059 |
US $56.93 |
||
|
92039
|
92039
92039-0734 RIVET,GUARD |
92039-0734 |
US $0.56 |
||
| replacement | |||||
|
92039
|
92039
92039-0751 RIVET,GUARD |
92039-0751 |
from US $0.78 |
||
|
92153
|
92153
92153-7007 BOLT,RECOIL STARTER |
92153-7007 |
from US $2.49 |
||
|
92171
|
92171
92171-7005 CLAMP |
92171-7005 |
US $8.53 |
||
