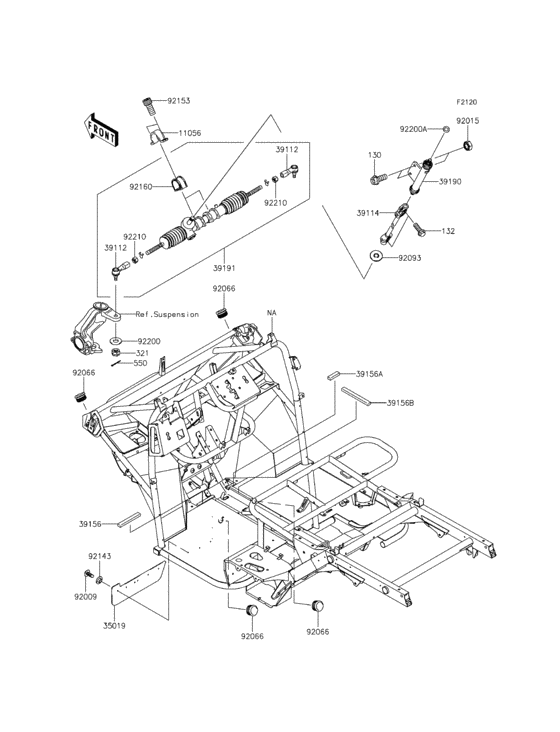

Frame Diagram Kawasaki KAF400 Mule 610 4X4 XC SE
- Model code
- KAF400FEF
- Engine Capacity
- 400
- Year
- 2014
- Sales region
- Canada
- Colour
- Colored Plastic Super Black (839)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB1025 BOLT-FLANGED,10X25 |
130BB1025 |
from US $1.43 |
||
|
132
|
132
132BB0825 BOLT-FLANGED-SMALL |
132BB0825 |
from US $1.61 |
||
|
321
|
321
321BA1000 NUT-CASTLE |
321BA1000 |
from US $1.24 |
||
|
550
|
550
550AA2022 PIN-COTTER,2.0X22 |
550AA2022 |
from US $0.94 |
||
|
11056
|
11056
11056-2238 BRACKET,STEERING GEAR |
11056-2238 |
from US $10.73 |
||
|
35019
|
35019
35019-0589 FLAP |
35019-0589 |
from US $46.97 |
||
|
39112
|
39112
39112-0008 TIE-ROD END, STEERING G |
39112-0008 |
from US $63.60 |
||
|
39114
|
39114
39114-0003 SHAFT-COMP-STRG |
39114-0003 |
from US $216.17 |
||
|
39156
|
39156
39156-0068 PAD |
39156-0068 |
US $4.86 |
||
|
39156A
|
39156A
39156-0069 PAD |
39156-0069 |
US $2.69 |
||
|
39156B
|
39156B
39156-0070 PAD |
39156-0070 |
US $6.77 |
||
|
39190
|
39190
39190-0004 SHAFT-ASSY-STEERING |
39190-0004 |
from US $163.30 |
||
|
39191
|
39191
39191-0023 GEAR-ASSY-STEERING |
39191-0023 |
from US $724.72 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92015
|
92015
92015-1189 NUT,LOCK,10MM,BLACK |
92015-1189 |
from US $3.96 |
||
|
92066
|
92066
92066-0036 PLUG |
92066-0036 |
US $2.69 |
||
|
92093
|
92093
92093-1313 SEAL |
92093-1313 |
from US $4.51 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92153
|
92153
92153-1269 BOLT,SOCKET,10X23 |
92153-1269 |
from US $1.24 |
||
|
92160
|
92160
92160-1084 DAMPER,STEERING GEAR |
92160-1084 |
from US $18.82 |
||
|
92200
|
92200
92200-0140 WASHER,10.3X23X1.6 |
92200-0140 |
from US $2.65 |
||
|
92200A
|
92200A
92200-0460 WASHER,15X25X1.6 |
92200-0460 |
from US $1.71 |
||
|
92210
|
92210
92210-0217 NUT,14MM |
92210-0217 |
from US $2.79 |
