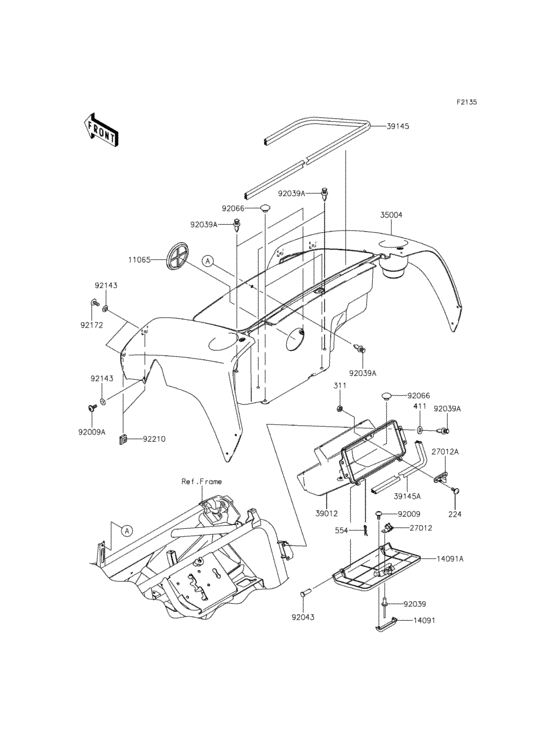

Front box Diagram Kawasaki KAF400 Mule 610 4X4 XC SE
- Model code
- KAF400FEF
- Engine Capacity
- 400
- Year
- 2014
- Sales region
- Canada
- Colour
- Colored Plastic Super Black (839)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
224
|
224
224AB0412 SCREW-PAN-WP-CROS,4X1 |
224AB0412 |
from US $0.48 |
||
|
311
|
311
311AB0400 NUT-HEX |
311AB0400 |
from US $0.95 |
||
|
411
|
411
411AA0800 WASHER-PLAIN |
411AA0800 |
from US $0.72 |
||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
11065
|
11065
11065-1053-6Z CAP,F.BLACK |
11065-1053-6Z |
US $9.83 |
||
|
14091
|
14091
14091-1659-284 COVER,STORAGE GRIP,GR |
14091-1659-284 |
US $9.59 |
||
|
14091A
|
14091A
14091-1660-284 COVER,CONTROL PANEL,G |
14091-1660-284 |
US $27.73 |
||
|
27012
|
27012
27012-1607 HOOK |
27012-1607 |
from US $4.98 |
||
|
27012A
|
27012A
27012-1612 HOOK |
27012-1612 |
from US $2.65 |
||
|
35004
|
35004
35004-0048-839 FENDER-FRONT,STORAGE, |
35004-0048-839 |
US $266.17 |
||
|
39012
|
39012
39012-1061-6Z CASE-STORAGE,RH,F.BLA |
39012-1061-6Z |
US $48.43 |
||
|
39145
|
39145
39145-0007 TRIM-SEAL,L=1940 |
39145-0007 |
US $48.08 |
||
|
39145A
|
39145A
39145-1130 TRIM-SEAL,L=774 |
39145-1130 |
US $23.19 |
||
|
92009
|
92009
92009-1444 SCREW |
92009-1444 |
from US $2.38 |
||
|
92009A
|
92009A
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREW |
92009-1694 |
from US $5.13 |
||
|
92039
|
92039
92039-1041 RIVET |
92039-1041 |
from US $2.53 |
||
|
92039A
|
92039A
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039A
|
92039A
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92043
|
92043
92043-125 PIN |
92043-125 |
from US $3.96 |
||
|
92066
|
92066
92066-1485 PLUG |
92066-1485 |
from US $1.24 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92172
|
92172
92172-0488 SCREW,TAPPING,6X20 |
92172-0488 |
from US $1.27 |
||
|
92210
|
92210
92210-0624 NUT,LEAF SPRING,6MM |
92210-0624 |
from US $0.94 |
||
