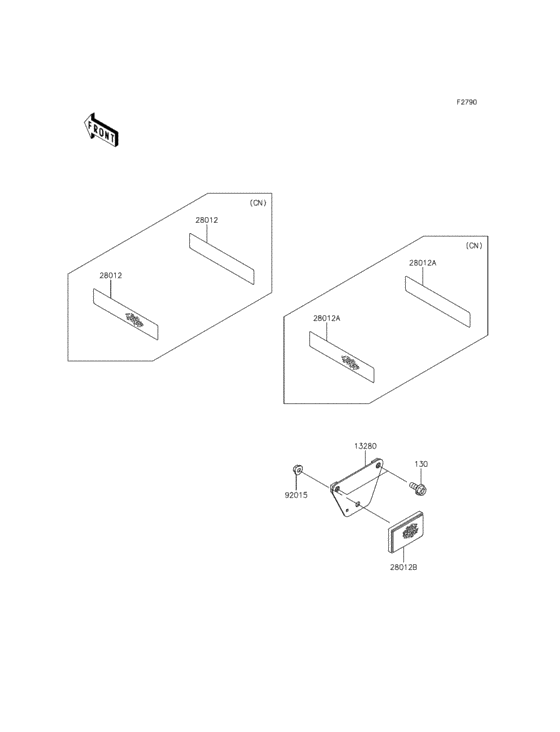

Reflectors Diagram Kawasaki KAF400 Mule 610 4X4 XC SE
- Model code
- KAF400FEF
- Engine Capacity
- 400
- Year
- 2014
- Sales region
- Canada
- Colour
- Colored Plastic Super Black (839)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 XC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
13280
|
13280
13280-0146 HOLDER,REFLECTOR |
13280-0146 |
US $9.28 |
||
|
28012
|
28012
28012-0053 REFLECTOR-REFLEX,YELL |
28012-0053 |
from US $1.40 |
||
|
28012A
|
28012A
28012-0054 REFLECTOR-REFLEX,RED |
28012-0054 |
from US $1.40 |
||
|
28012B
|
28012B
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
