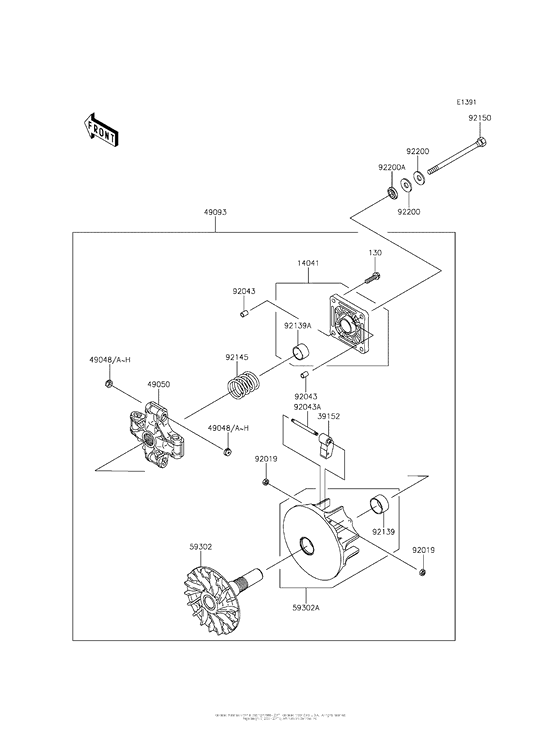

Drive Converter Diagram Kawasaki KAF400 Mule 610 4X4 XC SE
- Model code
- KAF400FEF
- Engine Capacity
- 400
- Year
- 2014
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CA0830 BOLT-FLANGED |
130CA0830 |
from US $1.27 |
||
|
14041
|
14041
14041-0022 COVER-COMP |
14041-0022 |
US $100.15 |
||
|
39152
|
39152
39152-0031 WEIGHT-RAMP |
39152-0031 |
US $59.48 |
||
|
49048
|
49048
49048-1087 SHOE,T=7.2 |
49048-1087 |
from US $9.17 |
||
|
49048A
|
49048A
49048-1088 SHOE,T=7.3 |
49048-1088 |
from US $9.17 |
||
|
49048B
|
49048B
49048-1089 SHOE,T=7.4 |
49048-1089 |
from US $15.08 |
||
|
49048C
|
49048C
49048-1090 SHOE,T=7.5 |
49048-1090 |
from US $9.17 |
||
|
49048D
|
49048D
49048-1091 SHOE,T=7.6 |
49048-1091 |
from US $9.17 |
||
|
49048E
|
49048E
49048-1092 SHOE,T=7.7 |
49048-1092 |
from US $9.17 |
||
|
49048F
|
49048F
49048-1093 SHOE,T=7.8 |
49048-1093 |
from US $9.17 |
||
|
49048G
|
49048G
49048-1094 SHOE,T=7.9 |
49048-1094 |
from US $9.17 |
||
|
49048H
|
49048H
49048-1095 SHOE,T=8.0 |
49048-1095 |
from US $9.17 |
||
|
49050
|
49050
49050-0012 SPIDER |
49050-0012 |
US $201.55 |
||
|
49093
|
49093
49093-0031 CONVERTER-ASSY-DRIVE |
49093-0031 |
US $836.25 |
||
|
59302
|
59302
59302-0025 SHEAVE-COMP,FIXED |
59302-0025 |
US $307.39 |
||
| replacement | |||||
|
59302
|
59302
59302-0005 SHEAVE-COMP,FIXED |
59302-0005 |
from US $219.28 |
||
|
59302A
|
59302A
59302-0097 SHEAVE-COMP |
59302-0097 |
from US $245.74 |
||
|
92019
|
92019
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92043
|
92043
92043-1264 PIN,DOWEL,8.2X10X14 |
92043-1264 |
from US $1 |
||
|
92043A
|
92043A
92043-0809 PIN |
92043-0809 |
from US $7.29 |
||
|
92139
|
92139
92139-0049 BUSHING |
92139-0049 |
from US $8.71 |
||
|
92139A
|
92139A
92139-0050 BUSHING |
92139-0050 |
from US $8.71 |
||
|
92145
|
92145
92145-0742 SPRING |
92145-0742 |
from US $20.84 |
||
|
92150
|
92150
92150-1008 BOLT,12X163.5 |
92150-1008 |
from US $24.19 |
||
|
92200
|
92200
92200-0249 WASHER |
92200-0249 |
from US $2.17 |
||
|
92200A
|
92200A
92200-1634 WASHER |
92200-1634 |
from US $4.98 |
||
