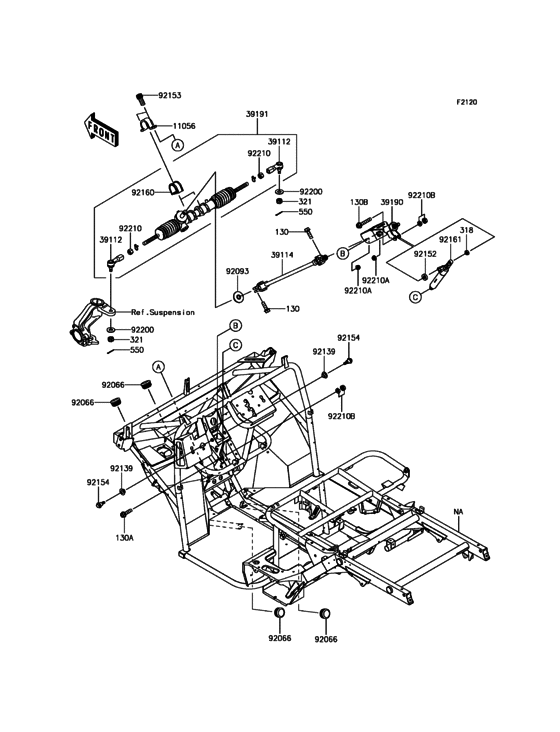

Frame Diagram Kawasaki KAF400 Mule SX 4X4 XC
- Model code
- KAF400KHF
- Engine Capacity
- 400
- Year
- 2017
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule SX 4X4 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0825 BOLT-FLANGED,8X25 |
130BA0825 |
from US $1.27 |
||
|
130A
|
130A
130CA0830 BOLT-FLANGED |
130CA0830 |
from US $1.27 |
||
|
130B
|
130B
130CA0845 BOLT-FLANGED,8X45 |
130CA0845 |
from US $1.40 |
||
|
318
|
318
318BA0800 NUT-HEX-SMALL,8MM |
318BA0800 |
from US $0.63 |
||
|
321
|
321
321BA1000 NUT-CASTLE |
321BA1000 |
from US $1.24 |
||
|
550
|
550
550AA2022 PIN-COTTER,2.0X22 |
550AA2022 |
from US $0.94 |
||
|
11056
|
11056
11056-2238 BRACKET,STEERING GEAR |
11056-2238 |
from US $10.73 |
||
|
39112
|
39112
39112-0008 TIE-ROD END, STEERING G |
39112-0008 |
from US $63.60 |
||
|
39114
|
39114
39114-0022 SHAFT-COMP-STRG |
39114-0022 |
from US $339.01 |
||
|
39190
|
39190
39190-0006 SHAFT-ASSY-STEERING |
39190-0006 |
from US $163.30 |
||
|
39191
|
39191
39191-0023 GEAR-ASSY-STEERING |
39191-0023 |
from US $724.72 |
||
|
92066
|
92066
92066-0036 PLUG |
92066-0036 |
US $2.69 |
||
|
92093
|
92093
92093-1313 SEAL |
92093-1313 |
from US $4.51 |
||
|
92139
|
92139
92139-0230 BUSHING |
92139-0230 |
from US $2.02 |
||
|
92152
|
92152
92152-1848 COLLAR,8.2X18X5 |
92152-1848 |
from US $3.64 |
||
|
92153
|
92153
92153-1269 BOLT,SOCKET,10X23 |
92153-1269 |
from US $1.24 |
||
|
92154
|
92154
92154-1320 BOLT,6X21.5 |
92154-1320 |
from US $1.40 |
||
|
92160
|
92160
92160-1084 DAMPER,STEERING GEAR |
92160-1084 |
from US $18.82 |
||
|
92161
|
92161
92161-1825 DAMPER, GAS SPRING |
92161-1825 |
from US $57.73 |
||
|
92200
|
92200
92200-2009 WASHER 10.3X23X1.6 |
92200-2009 |
from US $1.84 |
||
|
92210
|
92210
92210-0217 NUT,14MM |
92210-0217 |
from US $2.79 |
||
|
92210A
|
92210A
92210-0303 NUT,LOCK,FLANGED,6MM |
92210-0303 |
from US $0.63 |
||
|
92210B
|
92210B
92210-0934 NUT,HARD LOCK,8MM |
92210-0934 |
from US $2.79 |
